Optimizing high-performance fiber-reinforced cementitious composites for improving bridge resilience and sustainability

Abstract

High-performance fiber-reinforced cementitious composites (HPFRCC) have shown benefits in improving infrastructure resilience but often compromises sustainability due to the higher upfront cost and carbon footprint compared with conventional concrete. This paper presents a framework to optimize HPFRCC for improving bridge resilience and sustainability. This research considers ultra-high-performance concrete and strain-hardening cementitious composite featuring high mechanical properties, ductility, and damage tolerance. This paper establishes links between resilience, sustainability, mechanical properties of HPFRCC, and HPFRCC mixtures. The investigated mechanical properties include the first crack stress, ultimate tensile strength, and ultimate tensile strain. With the established links, sustainability is maximized while resilience is retained by optimizing HPFRCC mixtures. The framework is implemented into a case study of a bridge that collapsed during construction. Results show that use of HPFRCC enhances resilience, and HPFRCC mixtures can be engineered to minimize the material cost and carbon footprint while retaining high resilience.

Highlights

A practical framework is presented to improve bridge resilience and sustainability.

High-performance fiber-reinforced cementitious composites are tailored in the framework.

Effects of mechanical strength and ductility of materials on bridge resilience are evaluated.

Material cost and carbon footprint are minimized while bridge resilience is improved.

Introduction

Bridge collapse continues to occur and causes catastrophic consequences. Bridge collapse is usually attributed to one or a combination of multiple causes [1]: (1) unexpected external effects due to natural and/or anthropogenic events, such as earthquake [2], flood [3], scour [4], fire [5], and collision [6]; (2) material deterioration and lack of maintenance such as steel corrosion [7] and concrete cracks [8]; and (3) inadequate design and/or construction [9, 10]. In concrete bridges, the concrete is cracked as the tensile stress exceeds the first crack stress. Although steel bars are used to enhance the crack resistance, cracks are unavoidable due to many effects such as mechanical loads, shrinkage, and thermal effect. Concrete cracks compromise the serviceability and durability of bridges and increase the construction and maintenance expenses.

In 2018, a concrete bridge located in Miami, United States, collapsed during construction. The National Transportation Safety Board (NTSB) and Occupational Safety and Health Administration investigated the causes of collapse [11,12,13]. The investigation reports indicated that the collapsed bridge lacked redundancy which was defined as “the quality of a bridge that enables it to perform its design function in a damaged state” according to AASHTO LRFD Bridge Design Specifications [14]. Three redundancy pathways have been identified, which are load-path redundancy, structural redundancy, and internal redundancy [15, 16]. The load-path redundancy means that a bridge has multiple load paths, and the failure of one load path does not cause bridge collapse. Structural redundancy exists when damage of one or multiple bridge elements does not fail the load path. The internal redundancy describes that damage of an element does not fail the element. The load-path redundancy focuses on the load path; the structural redundancy focuses on one load path; and the internal redundancy focuses on the elements. Multiple scholars [17,18,19,20] investigated the causes of collapse and agreed that the collapsed bridge lacked redundancy.

The incident spurred bridge engineers to re-think the design and construction of bridges, as well as the effective measures to minimize occurrence of collapse. Multiple seminars were held to discuss lessons learned from the catastrophic incident [21, 22]. Intense attention was paid to the use of redundant structural elements and multiple load paths to improve the safety and resilience of bridges, but the fabrication and installation of more elements would also increase the cost and carbon footprint. In fact, the concept of redundancy was known to bridge engineers a long time ago. Indeterminate structures have higher resistance to collapse because the inclusion of redundant elements reduces the sensitivity to damage. However, it is noted that many studies were based on bridges made using conventional concrete, which was weak in tension and had limited internal redundancy. It must be cautious to extend the concept to the scenario where ductile materials are used to fabricate structural elements. For example, steel truss bridges have been proven successful in numerous projects, because steel is a ductile material [16]. It is rational to imagine what would happen if ductile concrete were used to construct the bridge that collapsed in Miami.

High-performance fiber-reinforced cementitious composites (HPFRCC) have demonstrated high ductility and excellent durability under earthquake [23] and fatigue loads [24]. Representative types of HPFRCC include ultra-high-performance concrete (UHPC) [25, 26] and strain-hardening cementitious composites (SHCC) [27, 28]. Both UHPC and SHCC feature high ductility and use chopped fibers to bridge cracks in HPFRCC. Existing studies showed that fibers increased crack resistance and enabled cracked HPFRCC to carry higher loads. UHPC is designed to achieve high mechanical strengths [29] by maximizing the particle packing density, and SHCC is designed to achieve high ductility by tuning fibers, matrix, and fiber-matrix interface [30]. SHCC exhibited multifunctionality such as self-healing and self-cleaning [31]. Both UHPC and SHCC have been used to construct connections of bridge decks and girders [32, 33].

Previous research showed that the replacement of conventional concrete by UHPC or SHCC improved the crack resistance, flexural strengths, shear strengths, and fatigue life of girders, slabs, columns, and joints [23, 24, 26, 33]. Cracked structural elements were able to carry higher loads before they failed. Based on previous research, it is speculated that the use of HPFRCC in bridges will enhance their resilience. Figure 1 illustrates the structural and material pathways of the resilience and sustainability of bridges. It is promising to leverage the material pathway to supplement the structural pathway in improving bridge resilience.

Fig. 1
figure 1

Illustration of the structural and material pathways to achieve resilience and sustainability

Meanwhile, HPFRCC is known to involve high upfront material cost [34] and carbon footprint [35], which cause concerns in sustainability. Multiple solutions were proposed to reduce cost and carbon emission. For example, material experts developed cost-effective eco-friendly HPFRCC mixtures using greener raw materials such as industrial by-products, solid wastes, and recycled materials [36,37,38]. Structural engineers proposed to only utilize HPFRCC at the critical positions of structures such as the connections of bridge decks [32] and joints of buildings [39], while the main bodies of structures were still made using conventional concrete reinforced by steel bars.

Two main challenges have been identified from the literature: (1) The effects of HPFRCC on the resilience and sustainability of bridges remain unclear. (2) It is unknown how the mixture of HPFRCC should be engineered to achieve optimal resilience and sustainability. The challenges are attributed to knowledge gaps in understanding of the effects of the mechanical properties of HPFRCC on bridge behaviors and the lack of effective approaches to optimize the design of HPFRCC mixtures for intended applications.

The overarching goal of this research is to develop a framework to improve bridge resilience and sustainability by using HPFRCC. Specifically, this study has three objectives: (1) to evaluate the effects of key mechanical properties of HPFRCC on the mechanical responses of bridges. The investigated properties include the first crack stress, ultimate tensile strength, and ultimate tensile strain of UHPC and SHCC; (2) to evaluate the resilience of bridges incorporating HPFRCC with different properties; and (3) to develop an effective and efficient approach to enhance material sustainability by optimizing the mixture design of HPFRCC.

The development of the approaches is performed based on the bridge that collapsed in Miami in 2018. This research has three technical contributions: (1) A practical framework is proposed to improve bridge resilience and sustainability in terms of the cost and carbon footprint by optimizing HPFRCC mixtures. (2) A material pathway is presented to supplement the structural pathway to achieve bridge resilience and to avoid bridge collapse. (3) A holistic understanding is established on the effects of the mechanical properties of HPFRCC on bridge responses.

Methodology

Overview of the framework

Figure 2 shows the framework that aims to improve resilience and sustainability via optimizing the mixture design of HPFRCC. The framework is established based on relationships between the design variables and mechanical properties of HPFRCC as well as the relationships between the mechanical properties of HPFRCC and the mechanical responses of bridges. With the bridge responses, resilience and sustainability are evaluated and optimized.

Fig. 2
figure 2

Illustration of the presented framework to improve bridge resilience and sustainability

In this research, the link between the design variables and mechanical properties of HPFRCC is established using machine learning predictive models developed in recent research [40,41,42], and the link between the mechanical properties of HPFRCC and the mechanical responses of bridges is determined via finite element analysis. To stand alone, the machine learning predictive models are briefly introduced in Section 2.2. The finite element analysis approach is presented in Section 2.3. It is envisioned that the framework is applicable to assess bridge resilience and sustainability under various hazards in a life cycle analysis. This research only focuses on the implementation of resilience during bridge construction, as elaborated in Section 2.4. Sustainability mainly considers material cost and carbon footprint, as presented in Section 2.5.

Machine learning predictive models

Different machine learning models were developed to predict the mechanical properties of UHPC and SHCC in recent research [40,41,42]. To avoid duplication, the predictive models are only briefly introduced herein. The predictive models were machine learning models trained using a large quantity of experimental data of UHPC and SHCC. The trained models were used to reflect the relationship between mixture design variables and mechanical properties. Examples of mixture design variables include the water-to-binder ratio, sand-to-binder ratio, binder composition, and so on. The mechanical properties include the compressive and tensile strengths, first crack stress, ultimate strain capacity, and so on.

With the predictive models, the mechanical properties of HPFRCC mixtures are predictable as long as the mixture design variables are provided. In other words, the predictive models offer the relationships between the mixture design variables and the mechanical properties of HPFRCC. The prediction accuracy was evaluated using different performance metrics, and the evaluation results indicated that the predictive models achieved high accuracy [40,41,42].

Finite element analysis

Three-dimensional finite element analysis was performed to analyze the mechanical responses of bridges with HPFRCC. Compared with conventional concrete, HPFRCC features unique tensile properties. Figure 3 shows a representative tensile stress-strain curve [43]. HPFRCC bears higher loads after cracks are generated. The curve has three linear segments marked by points O, A, B, and C: (1) O-A: linear elastic stage, (2) A-B: hardening stage, and (3) B-C: descending stage. The stress and the strain at point A are the first crack stress and the first crack strain, respectively. The stress and the strain at point B are the ultimate tensile strength and the ultimate tensile strain, respectively. The strain at point C is the final strain.

Fig. 3
figure 3

Illustration of the tensile stress-strain constitutive model of HPFRCC with high ductility

The tensile stress-strain relationship of HPFRCC is formulated as:

$$\sigma =\left\{\begin{array}{c}\frac{\sigma_{t0}}{\varepsilon_{t0}}\varepsilon \kern11.5em ,\kern0.5em 0\le \varepsilon <{\varepsilon}_{t0}\\ {}{\sigma}_{t0}+\left({\sigma}_{tu}-{\sigma}_{t0}\right)\left(\frac{\varepsilon -{\varepsilon}_{t0}}{\varepsilon_{t0}-{\varepsilon}_{tu}}\right),\kern0.5em {\varepsilon}_{t0}\le \varepsilon <{\varepsilon}_{tu}\\ {}{\sigma}_{tu}\left(1-\frac{\varepsilon -{\varepsilon}_{tu}}{\varepsilon_{tf}-{\varepsilon}_{tu}}\right)\kern4.5em ,\kern0.5em {\varepsilon}_{tu}\le \varepsilon <{\varepsilon}_{tf}\\ {}0\kern13.25em ,\kern0.5em \varepsilon \ge {\varepsilon}_{tf}\end{array}\right.$$
(1)

where σ and ε are the tensile stress and tensile strain, respectively; εt0 and σt0 are the first crack strain and first crack stress, respectively; εtu an σtu are the ultimate tensile strain and ultimate tensile strength, respectively; and εtf is the final strain.

The first crack stress σt0 is the tensile stress at the elastic limit of HPFRCC [43]. The first crack strain εt0 is the strain corresponding to the first crack stress. First crack stress and first crack strain characterize the crack resistance of HPFRCC. The ultimate tensile strength σtu is the peak tensile stress. The ultimate tensile strain εtu is the strain corresponding to the peak tensile stress [43]. The ultimate tensile strength and ultimate tensile strain characterize the post-cracking behavior. The final strain εtf is the tensile strain of HPFRCC when the tensile stress is reduced to zero. The final strain is a parameter used to control the descending stage in terms of the descending slope. More details of finite element models are elaborated in the case study in Section 3.

Evaluation of resilience

Various approaches have been proposed to evaluate the resilience of bridges in the literature. In this research, resilience is defined as the ability of a bridge to maintain a level of robustness during or after an extreme event, and the ability to return to a desired performance level within the shortest time to minimize the impact on the community, as shown in Fig. 4. This section introduces the key parameters such as the robustness and recovery time, and justifies the quantification of the key parameters.

Fig. 4
figure 4

Conceptual illustration of the resilience of a bridge subjected to a disruptive event

Robustness (PR) is the residual performance after extreme events and is defined as:

$${P}_R=100\%-f\left(H,V,{U}_F,I\right)=100\%-\max \left(9.259\times H\times V\times {U}_F\right)\times I\ge 0\%$$
(2)

where H is the hazard value; V is the vulnerability value related to damages in bridges; UF is the uncertainty factor used to consider the uncertainties in bridge assessment as shown in Eq. (3); and I is the importance factor of the bridge. The values of H and I are determined in Tables S1 and S2 in the supplementary material. The value of PR is normalized to the range of 0 to 100% by a constant 9.259. PR is calculated to represent the worst scenario as an envelope of all hazard and vulnerability combinations that could possibly cause interruption of performance.

$${U}_F=\left\{\begin{array}{c}1.2,\kern0.5em \textrm{Visual}\ \textrm{inspection}\\ {}1.1,\kern0.5em \textrm{Visual}\ \textrm{inspection}\ \textrm{and}\ \textrm{analytical}\ \textrm{techniques}\\ {}1.0,\kern0.5em \textrm{Visual}\ \textrm{inspection},\textrm{analytical},\textrm{and}\ \textrm{NDE}\ \textrm{techniques}\end{array}\right.$$
(3)

Recovery time

The recovery time (Trec) is a function of the basic restoration time and adjustment factors, as shown in Eq. (4):

$${T}_{rec}={T}_{res}\times {\alpha}_1\times {\alpha}_2\times {\alpha}_b$$
(4)

where Trec is the recovery time; Tres is the basic restoration time; α1, α2, and αb are adjustment factors. The values of the basic restoration time and the adjustment factors are determined in Tables S3 to S6 in the supplementary material.

Resilience

Resilience (R) is calculated as the ratio of the area under the post-disruption performance to the area under the target performance level, as shown in Eq. (5). The target performance level is assumed to be 100% over the control time Trec. To compare bridges with regard to their resilience, it is useful to put the calculated value in the context of a discrete ranking system, as suggested in Table S7 in the supplementary material. The thresholds show the ranking method based on resilience value, and they are tailored in intended applications.

$$R=\frac{\int_{T_0}^{T_0+{T}_{rec}}P(t) dt}{\int_{T_0}^{T_0+{T}_{rec}}P\left(100\%\right) dt}$$
(5)

where P(t) is the performance of the bridge; P(100%) is the performance of the bridge at 100% level (non-interrupted); T0 is the time (unit in days) when extreme or disruptive events take place.

Evaluation of sustainability

With the mixture design of HPFRCC, the sustainability of bridge can be evaluated in terms of material cost and carbon footprint. The inventory of unit material cost and carbon footprint of each ingredient of HPFRCC were presented in references [40,41,42] and adopted to calculate the material cost and carbon footprint using Eqs. (6) and (7):

$$MC=\sum_{\textrm{i}=0}^{\textrm{n}}{m}_i\times {c}_i$$
(6)
$$CF=\sum_{\textrm{i}=0}^{\textrm{n}}{m}_i\times {\textrm{CO}}_2-e{q}_i$$
(7)

where MC and CF are the material cost and carbon footprint; n is the number of raw materials; mi is the mass of i-th raw material in a unit mass of HPFRCC; ci is the unit price of the i-th raw material; and CO2 – eqi is the carbon dioxide equivalent of a unit mass of the i-th raw material.

Multi-objective optimization

With the links between the mixture design variables of HPFRCC and bridge resilience and sustainability, a multi-objective optimization problem is defined to minimize the material cost and carbon footprint while retaining the resilience of bridge through optimizing the mixture design. In other words, bridge resilience is used to define the constraints, and the optimal mixture design is searched to minimize the material cost and carbon footprint.

The objective functions and design constraints are formulated to maximize the mechanical properties and minimize the material cost and the carbon footprint of HPFRCC. Two objective functions were considered in the optimization: (1) the minimal material cost; and (2) the minimal carbon footprint.

Four design constraints were imposed to ensure high bridge resilience: (I) CS ≥ α1, (II) FCS ≥ α2, (III) UTS ≥ α3, and (IV) UTN ≥ α4, where CS, FCS, UTS, and UTN denote the compressive strength, first crack stress, ultimate tensile strength, and ultimate tensile strain, respectively; and αi is the lower bound for the i-th design constraints. The lower bounds are determined through performing a parametric study of the mechanical properties of HPFRCC on the bridge resilience based on a finite element analysis. The lowest compressive strength, first crack stress, ultimate tensile strength, and ultimate tensile strain of HPFRCC that lead to high resilience are used to set the lower bounds of the design constraints.

The Non-dominated Sorting Genetic Algorithm II (NSGA-II) [44] was adopted to solve the multi-optimization problem. The algorithm searches for a set of optimal solutions that define the best trade-off between competing objectives. Among the set of design solutions, the optimal mixture designs are selected to achieve high resilience and sustainability. The selection is performed based on the ranking of the design solutions.

The ranking of the design solutions is performed using a sustainability index (EI) defined as:

$$E{I}_i=1-0.5\left[\frac{C{F}_i-\min (CF)}{\max (CF)-\min (CF)}+\frac{MC_i-\min (MC)}{\max (MC)-\min (MC)}\right]$$
(8)

where EIi is the sustainability index of the i-th mix design; CFi and MCi are the carbon footprint and material cost of the i-th mix design, respectively. The sustainability index is between 0 and 1: 0 means the least sustainability, and 1 means the highest sustainability.

Case study

Bridge description

The bridge was a faux cable-stayed bridge with a determinate prestressed concrete truss girder, as shown in Fig. 5a. The bridge had two spans, including a 53.0-m main span over an eight-lane roadway and a 30.2-m canal span [45]. The walkway deck acts as the bottom flange, and the roof canopy acts as the top flange. The diagonal struts carry either compression or tension forces, based on angles and positions. An accelerated bridge construction method was adopted to erect the bridge over the roadway. After the tendons were stressed, a transporter was used to roll the main span into place and set it on the piers.

Fig. 5
figure 5

Illustration of the bridge: a rendering of the bridge; and b the critical step causing bridge collapse: re-tensioning of the tendons in member 11. Cracks were observed at the joint between members 11 and 12 before the re-tensioning operation

Before the main span was moved using the transporter, concrete cracks were observed in the nodal region between truss members 11 and 12 (Fig. 5b). With the cracks, the bridge collapsed when tendons in member 11 were re-tensioned. The canal span, access ramps, and faux cable-stay tower were not constructed yet when the bridge collapsed [13].

Forensic analysis

Nodal region

According to Federal Highway Administration [13], severe underestimation of the demands and overestimation of the capacity of the nodal regions were made in the bridge design, as shown in Fig. 6. Although the nodal region 1–2 between members 1 and 2 had the highest demand-to-capacity ratio, the bridge failed at the nodal region 11–12, because the nodal region 11–12 was framed into a 0.6-m diaphragm, while node region 1–2 was framed into a 1.0-m diaphragm.

Fig. 6
figure 6

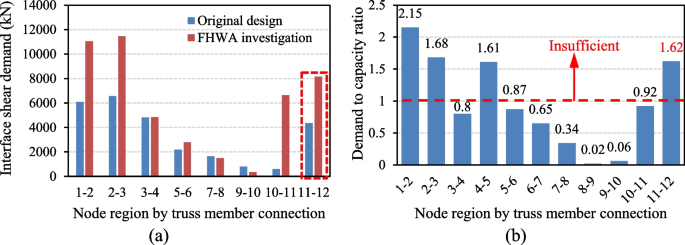

Underestimation of demands and overestimation of capacity of nodal regions in bridge design [13]: a interface shear force demands in the original design and FHWA investigation; and b demand to capacity ratios for nodal regions

In addition, the depth of member 11 was only 67% that of member 2. NTSB concluded that the concrete distress, which was initially observed in nodal region 11–12, was consistent with the underestimation of interface shear demand and the overestimation of identified capacity in the bridge design [13].

Cold joints

The superstructure of the bridge was built offsite through casting concrete three times. The concrete casting resulted in cold joints at each end of the truss members: one end at the bottom of the member (deck-to-member interface), and the other end at the top of the member (member-to-canopy interface), as shown in Fig. 7a [13]. In the design of the bridge, multiple drawings pointed out that cold joints need to be roughened to achieve a 6-mm amplitude of roughness [13]. However, the interfaces of cold joints were not properly roughened in real construction, which leads to reduced shear resistance at the interfaces of cold joints, as shown in Fig. 7b.

Fig. 7
figure 7

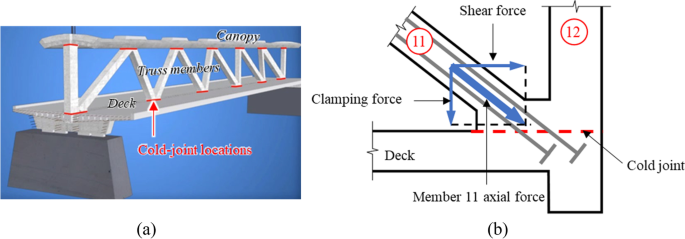

Cold joints at each end of the truss members caused by concrete casting: a positions of cold joints [12]; and b internal force analysis at the 11–12 nodal position

Cracks

The first crack appeared at the nodal region 11–12 when the falsework was removed [11]. Subsequent cracks were produced during transport of the bridge. After the bridge superstructure was supported by the piers, member 11 was de-tensioned according to the construction plan [45]. When member 11 was de-tensioned, more cracks were generated in nodal region 11–12. Figure 8 shows the development of cracks in the deck and the diaphragm of the bridge after de-tensioning of the tendons in member 11 was completed.

Fig. 8
figure 8

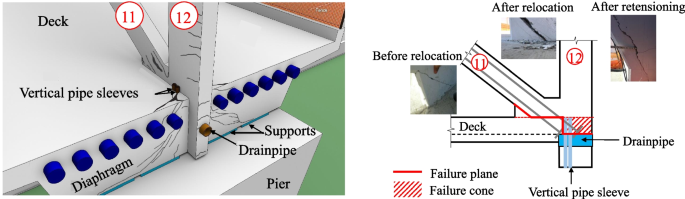

Development of cracks in the deck and the diaphragm after de-tensioning of member 11: a the crack pattern at nodal region 11–12 [13]; and b the evolution of cracks and the failure mechanism of nodal region 11–12 [12, 13]

Re-tensioning

After severe cracks were observed from the deck and the diaphragm, tendons in member 11 were re-tensioned. The re-tensioning operation was performed to close the observed cracks, which however increased the shear forces across the interface of cold joints. The increase of shear forces caused failure in the cold joint, which subsequently resulted in the bridge collapse [13]. More details of the collapse process are available in references [11,12,13, 17,18,19,20].

Finite element model

Figure 9a shows the finite element model established using software ABAQUS [50]. When the bridge collapsed during construction, only the main span was constructed. In this study, only the main span of the bridge was considered in the finite element model. Concrete was modeled using three-dimensional eight-node solid elements with reduced integration (C3D8R). Steel bars and prestressed tendons were modeled using three-dimensional two-node truss elements (T3D2). A mesh size convergence study was performed to determine the appropriate mesh size. The global mesh size was 120 mm, and the mesh size was refined to 60 mm at joints.

Fig. 9
figure 9

Finite element model of the bridge: a meshed model; b tensile properties of SHCC [46]; c tensile properties of UHPC [47]; and d compressive properties of UHPC [48, 49]

The mechanical properties of concrete, steel bars, prestressing tendons, and steel rods adopted in the finite element model were consistent with the realistic bridge [45]. The tensile strength and the compressive strength of the concrete were 2.88 MPa and 58.5 MPa [51], respectively. The elastic modulus and Poisson’s ratio were 30.8 GPa and 0.2 [51], respectively. The density was 2650 kg/m3 [51]. In simulation of post-cracking behavior of concrete, inelastic concrete properties were applied using the concrete damage plasticity (CDP) model [52, 53]. The parameters used in the CDP model are listed as follows according to reference [52]: dilatation angle = 30°; eccentricity = 0.1; fb0/fc0 = 1.16; K = 0.6667; and viscosity parameter = 0.0005. The dilatation angle and the eccentricity parameter reflect the plastic straining response of the concrete. Parameters fb0/fc0 and K determine the shape and the size of the bi-linear yield surface of the concrete.

Material properties of UHPC and SHCC were determined from test data in references [46,47,48,49], as shown in Fig. 9b to d. The adopted constitutive relationships are conservative compared with the test data. The properties of SHCC and UHPC used in the CDP model are shown in Table 1. Regarding the compressive properties, this research adopted the same CDP models, and the stress magnitudes were tailored using the compressive strengths of the concrete, SHCC, and UHPC.

Table 1 Material properties for SHCC and UHPC [42, 48]

Damage initiation criterion and element deletion were defined to reflect tensile damage. For the conventional concrete, the definition of DAMAGET is elaborated in references [52, 53]. For SHCC and UHPC, DAMAGET is defined as shown in Eq. (9):

$$DAMAGET=\left(\varepsilon -{\varepsilon}_e\right)/\left({\varepsilon}_{tf}-{\varepsilon}_e\right)$$
(9)

where ε is the tensile strain; εe is the elastic strain; εtf is the final tensile strain; and thus, the value of DAMAGET is between 0 to 1. DAMAGET is utilized to correlate with vulnerability value (V) in this study using Eq. (10):

$$V=\left\{\begin{array}{c}1,\kern0.5em 0< DAMAGET\le 0.25\\ {}2,\kern0.5em 0.25< DAMAGET\le 0.6\\ {}3,\kern0.5em 0.6< DAMAGET\le 1.0\end{array}\right.$$
(10)

Investigated cases

Table 2 lists 22 cases investigated in this study. Case 1 represents the real bridge concrete and is used as the control. There are 11 cases for SHCC, and 10 cases for UHPC. In this study, the investigated material properties were the first crack stress (σt0), the ultimate tensile strength (σtu), and the ultimate tensile strain (εtu).

Table 2 Investigated cases

Equation (11) was developed to relate the first crack stress to the compressive strength of HPFRCC according to ACI 318 [54, 55]:

$${\sigma}_{t0}=0.62\times \lambda \times {\sigma_c}^{0.5}$$
(11)

where σc is to compressive strength of HPFRCC (unit in MPa); λ is a constant related to the length of fibers and is calculated by Eq. (12a, b, c):

$${\lambda}_{min}\le \lambda <{\lambda}_{ave}$$
(12a)
$${\lambda}_{min}=\left\{\begin{array}{c}1.0\kern7.25em ,\kern0.5em \textrm{for}\ \textrm{concrete}\ \textrm{without}\ \textrm{fiber}\\ {}0.75\kern6.5em ,\kern0.5em \textrm{for}\ \textrm{HPFRCC}\ \textrm{with}\ \textrm{fiber}\ \textrm{length}\ \left({l}_f\right)<10\ \textrm{mm}\ \\ {}0.02{l}_f+0.1\le 1.3,\kern0.5em \textrm{for}\ \textrm{HPFRCC}\ \textrm{with}\ \textrm{fiber}\ \textrm{length}\ \left({l}_f\right)\ge 10\ \textrm{mm}\end{array}\right.$$
(12b)
$${\lambda}_{ave}=\left\{\begin{array}{c}1.0\kern4.25em ,\kern0.5em \textrm{for}\ \textrm{concrete}\ \textrm{without}\ \textrm{fiber}\\ {}1.0\kern4.25em ,\kern0.5em \textrm{for}\ \textrm{HPFRCC}\ \textrm{with}\ \textrm{fiber}\ \textrm{length}\ \left({l}_f\right)<10\ \textrm{mm}\\ {}0.02{l}_f+0.4,\kern0.5em \textrm{for}\ \textrm{HPFRCC}\ \textrm{with}\ \textrm{fiber}\ \textrm{length}\ \left({l}_f\right)\ge 10\ \textrm{mm}\end{array}\right.$$
(12c)

where λmin and λave are the minimum value and the average value for λ based on data points; and lf refers to fiber length for HPFRCC.

The ranges of the first crack stresses of SHCC and UHPC were determined using Eqs. (11) and (12a, b, c). The first crack strains of SHCC and UHPC mixtures are typically less than 0.1% [56, 57]. Regarding SHCC, the investigated first crack stresses were 2 MPa, 3 MPa, 4 MPa, 5 MPa, and 6 MPa; the tensile strengths were 6 MPa, 8 MPa, 10 MPa, and 12 MPa; and the tensile strain capacity values were 4%, 6%, 8%, and 10%. Regarding UHPC, the investigated first crack stresses were 8 MPa, 10 MPa, 12 MPa, and 14 MPa; the tensile strengths were 10 MPa, 12 MPa, 14 MPa, and 16 MPa; and the tensile strain capacity values were 0.3%, 0.5%, 0.7%, and 1.0%. Many experimental data showed that UHPC achieved an ultimate tensile strain capacity of 0.3% to 0.5% [58,59,60]. Some researchers used the ultimate strain capacity of 1% [47, 48], which is possible to achieve but has not been supported by many experimental data. Therefore, the parametric study on the tensile strength of UHPC is based on the strain capacity of 0.3%.

According to previous research [38], the first crack strain, first crack stress, ultimate tensile strain, and ultimate tensile stress of UHPC are also related to compressive strength and flexural strength, as shown in Eq. (13a, b, c, d):

$${\sigma}_{fl}=1100\times \rho \times \left(1-\frac{R_F}{2.3}\right)$$
(13a)
$${E}_{uc}=244.14\times {\sigma_c}^{0.5}$$
(13b)
$${\sigma}_{tu}=0.35\times {\sigma}_{fl}$$
(13c)
$${\varepsilon}_{tu}=\frac{\sigma_{tu}}{E_{uc}}$$
(13d)

where σc and σfl refer to the compressive strength (unit: MPa) and the flexural strength (unit: MPa) of UHPC, respectively; ρ refers to the fiber content; RF refers to the ratio of recycled steel fibers to total fiber content; Euc refers to the hardening modulus of UHPC.

Results and discussions

Validation of finite element model

Figure 10a shows the maximum principal stress in member 11 before the re-tensioning of the as-built bridge made using the conventional concrete. The maximum principal tensile stress near the anchor is larger than 2.88 MPa. This is consistent with the cracks observed from the bridge before the re-tensioning operation. After the re-tensioning, the maximum principal stresses around the joints are further increased, revealing that the re-tensioning tends to generate cracking in the concrete. Figure 10b shows that DAMAGET around the anchorage area reaches 1.0, indicating that the concrete around the anchorage area loses tensile load-carrying capacity. The finite element analysis results are compared with the observation of cracks from the real bridge [12]. It is found that the finite element analysis results are consistent with the observation from Fig. 10c and d. Therefore, the finite element model is used to predict the internal stresses in the bridge. The above analysis indicates that the failure of the bridge is closely related to the tensile damage in member 11 and its nodal regions. Therefore, the following analysis mainly focuses on member 11 and its nodal regions at the two ends of the member.

Fig. 10
figure 10

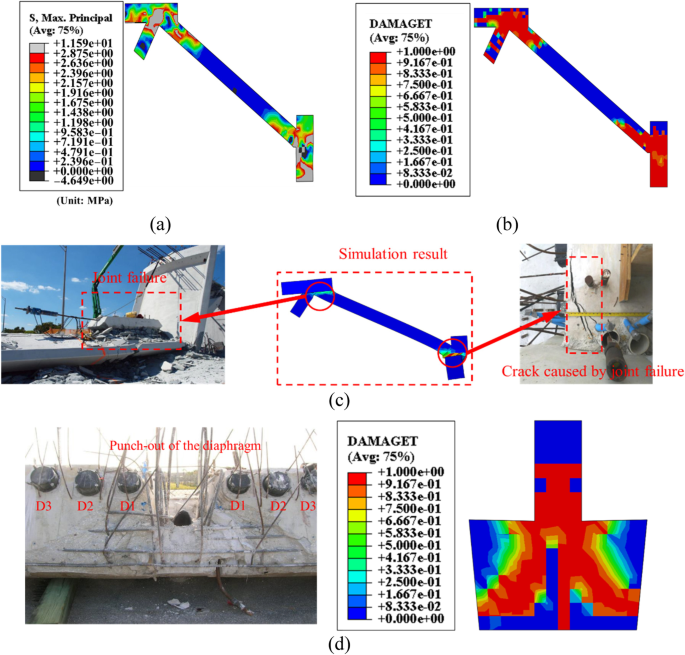

Analysis results of member 11: a contour of the maximum principal stress before the re-tensioning of member 11 (unit: MPa); b contour of DAMAGET before the re-tensioning of member 11; c failure mode of the bridge after the re-tensioning of member 11; and d tensile damage of the diaphragm after re-tensioning of member 11

Bridge resilience

The approach in Section 2.4 was used to determine the values of hazard (H), vulnerability (V), uncertainty (UF), importance (I), and recovery time for post-extreme event restoration (Trec). The bridge was located in a 100-year flood plain (H = 3) with high hurricane risk (H = 3) and was located within 80 km of the coast (H = 3). The bridge spanned over a busy city street with an annual average daily traffic (ADTT) of 48,500 (H = 3) based on 2017–2018 data, and the bridge carried no history of overload trucks (H = 1). Seismicity of the region is seismic design category A (H = 1), with no record of significant earthquake (H = 1). The DAMAGET of the bridge reached 1 (V = 3). UF is assumed to be 1.2 because only visual inspection information was used. The bridge was not located on the Strategic Highway Network (STRAHNET), and it is a pedestrian bridge with no ADTT. Therefore, the importance factor of the bridge (I) is 1. Robustness of the bridge is calculated as:

$${P}_R=100\%-\max \left(9.259\times H\times V\times {U}_F\right)\times I=0\%$$
(14)

The bridge collapsed on March 15, 2018, and the road was closed until March 24, 2018, when the debris was cleaned. The severity of the hazard was moderate for an isolated hazard, and the basic extreme event time (Tres) was 2 weeks. It is assumed that the agency did not meet extreme event management practices (α1 = 1.0). Also, there was no history of extreme events in the year before 2018 (α2 = 1.0). The bridge type was single span (αb = 1.0). Therefore, the recovery time for the bridge is calculated as:

$${T}_{rec}={T}_{res}\times {\alpha}_1\times {\alpha}_2\times {\alpha}_b=14\ \textrm{days}$$
(15)

Based on the robustness and recovery time, the resilience of the bridge is calculated as:

$$R=\frac{\int_{T_0}^{T_0+{T}_{rec}}P(t) dt}{\int_{T_0}^{T_0+{T}_{rec}}P\left(100\%\right) dt}=\frac{0.5\times 14\times 100}{14\times 100}=50\%$$
(16)

According to the proposed resilience classification (see Table S7), this bridge is classified in the low-resilience category, which is aligned with the identified level of damage (complete failure) and is validated against the damage source for the bridge collapse: Lack of redundancy.

Parametric study results

Figure 11a to c compare the tensile damage distributions in member 11 made using conventional concrete, SHCC, and UHPC, respectively, when the member was re-tensioned. When the conventional concrete is used, the two joints of member 11 are severely damaged, as indicated by the results of DAMAGET reaching 1.0 in Fig. 11a. Major cracks were caused and developed beyond the anchorage zone of the tendons in the deck. When the SHCC is used, the severity of damage at the two joints of member 11 is highly alleviated as shown in Fig. 11b. Member 11 is expected to exhibit densely-distributed microcracks under tension. Therefore, damage tolerant behavior of SHCC makes it just slightly damaged at joints under the same load condition. When the UHPC is used, there is minor damage in member 11, as shown in Fig. 11c. The different damage conditions are associated with the different mechanical properties, in particular, the tensile strength and strain capacity of the different materials.

Fig. 11
figure 11

Contours of tensile damage distributions of member 11 made using different materials: a conventional concrete; b SHCC (σt0 = 4 MPa; εtu = 4%; σtu = 8 MPa); and c UHPC (σt0 = 10 MPa; εtu = 0.3%; σtu = 14 MPa)

The results indicate that using HPFRCC in critical joints or members decreases the level of tensile damage. It is envisioned that the resilience value and category of the investigated bridge will be significantly improved with proper mechanical properties of HPFRCC, as elaborated in parametric studies in Section 4.3.

Effect of first crack stress

Figure 12 shows the results of effect of first crack stress on the maximum tensile damage and resilience. Figure 12a shows that as the first crack stress of SHCC increases, the maximum tensile damage (DAMAGET) decreases, and the resilience value increases. If the SHCC has an ultimate tensile strain of 4% and an ultimate tensile strength of 8 MPa, which are conservative according to the published papers [61,62,63], as the first crack stress increases from 2 MPa to 6 MPa, the tensile damage decreases from 0.82 to 0.30, and the resilience increases from 50% to 67%.

Fig. 12
figure 12

The effect of the first crack stress on the maximum tensile damage and resilience: a SHCC (εtu = 4% and σtu = 8 MPa); and b UHPC (εtu = 0.3% and σtu = 14 MPa)

Figure 12b shows that with the increase of first crack stress of UHPC, the maximum tensile damage decreases, and the resilience value increases. If the UHPC has an ultimate tensile strain of 0.3% and an ultimate tensile strength of 14 MPa, which is conservative according to the published papers [58,59,60, 64], when the first crack stress is increased from 8 MPa to 14 MPa, the tensile damage is reduced from 0.38 to 0.05, which is smaller than 0.30 for the SHCC shown in Fig. 12a, and UHPC with a DAMAGET of 0.05 behaves like uncracked UHPC in terms of the load-carrying capability and long-term durability [65]; the resilience value is increased from 67% to 83%, and resilience class of UHPC at R = 83% is high.

Effect of ultimate tensile strength

Figure 13 shows the effect of the ultimate tensile strength on the maximum tensile damage and resilience. In Fig. 13a, the SHCC has a first crack stress of 4 MPa and ultimate tensile strain of 4%, which is conservative according to the published papers [61,62,63]. As the ultimate tensile strength of SHCC increases from 6 MPa to 12 MPa, the maximum tensile damage decreases from 1 to 0.027, and the resilience increases from 50% to 83%. For cracked SHCC with DAMAGET equal to 0.027, it behaves like uncracked SHCC in terms of the load-carrying capability and long-term durability according to reference [65].

Fig. 13
figure 13

The effect of the ultimate tensile strength on the maximum tensile damage and resilience: a SHCC (σt0 = 4 MPa and εtu = 4%); and b UHPC (σt0 = 10 MPa and εtu = 0.3%)

In Fig. 13b, the UHPC has a first crack stress of 10 MPa and an ultimate tensile strain of 0.3%, which is conservative according to the published papers [58,59,60, 64]. As the ultimate tensile strength increases from 10 MPa to 16 MPa, the maximum tensile damage decreases from 0.57 to 0.18, and the resilience increases from 67% to 83%. The DAMAGET is higher than 0.027 of the SHCC in Fig. 13a because DAMAGET is defined based on the tensile strain, and the UHPC has a lower tensile strain capacity than the SHCC as shown in Fig. 9.

Effect of ultimate tensile strain

Figure 14 shows the effect of the ultimate tensile strain on the maximum tensile damage and resilience. In Fig. 14a, the SHCC has a first crack stress of 4 MPa and an ultimate tensile strength of 8 MPa, which is conservative according to the published papers [61,62,63]. As the ultimate tensile strain increases from 4% to 10%, the maximum tensile damage decreases from 0.59 to 0.23, and the resilience increases from 67% to 83%. In Fig. 14b, the UHPC has a first crack stress of 10 MPa and an ultimate tensile strength of 10 MPa, which is conservative according to the published papers [58,59,60, 64]. As the ultimate tensile strain increases from 0.3% to 1%, the maximum tensile damage decreases from 0.57 to 0.15, and the resilience increases from 67% to 83%.

Fig. 14
figure 14

The effect of tensile strain capacity on the maximum tensile damage and resilience: a SHCC (σt0 = 4 MPa and σtu = 8 MPa); b UHPC (σt0 = 10 MPa and σtu = 10 MPa)

Summary

The results indicate that the use of UHPC and SHCC is able to decrease the tensile damage at the critical locations of the bridge. Since the tensile damage is the main cause of the collapse of the bridge, the resilience of the bridge is enhanced. Table 3 summarized the resilience results based on the parametric study. The high resilience suggests that the use of UHPC or SHCC will likely avoid the collapse. The parametric study reveals the benefits of increasing the tensile strength and ductility of the ductile materials and provides data to guide the design of the materials and the structures made using the ductile materials.

Table 3 Summarization of resilience results in parametric study

Optimization results

A number of candidate solutions are selected based on the results presented in Section 4.3, as listed in Table 4. High resilience is achieved by using mixtures with compressive strengths higher than 58.5 MPa, first crack stresses higher than 4 MPa, ultimate tensile strengths higher than 8 MPa, and ultimate tensile strains more than 4%. The sustainability index of each mixture is reported in Table 4. The results indicate that mixture S1 is the most cost-effective and eco-friendly mixture with a sustainability index of 0.89.

Table 4 Optimal design of HPFRCC mixtures

Conclusions

This research presents a framework for simultaneous enhancement of the resilience and the sustainability of bridges using HPFRCC through optimizing the mixture. The research framework is demonstrated by using UHPC and SHCC based on a collapsed bridge. The collapse process and mechanisms are discussed. The performance of the bridge using SHCC and UHPC is tested, and a parametric study is conducted to understand the effect of tensile behaviors of SHCC and UHPC on the mechanical response and resilience of the bridge. Results show that HPFRCC mixtures can be engineered to minimize the material cost and carbon footprint while retaining high resilience. Based on the investigations, the following conclusions are drawn.

  • The presented framework is able to simultaneously optimize the mechanical properties, material costs, and carbon footprint of HPFRCC for bridge resilience and sustainability. The optimization of mixture design of HPFRCC enables the bridge to achieve the minimal material cost and carbon footprint while remaining high resilience.

  • The proposed material pathway is promising to alleviating damage in bridges and enhance the collapse resistance under extreme loading conditions. With the use of the UHPC and SHCC, tensile damage was reduced from “significant” to “minor”.

  • The tensile properties of UHPC and SHCC have large effects on the damage condition. The damage index decreases with the increase of the first crack stress, tensile strength, tensile strain capacity, and ultimate strain capacity. The parametric study provides useful data to guide the design of HPFRCC for bridge applications.

  • The investigated bridge collapse was associated with concrete cracks. For bridge collapse controlled by tensile damage, the use of ductile materials is capable of greatly improving safety and resilience. Adoption of ductile materials allows bridge engineers to design bridges with thin elements while retaining the load-carrying capacity.

Based on this research, the following opportunities are identified for future research:

  • This study tests the feasibility of the proposed framework to improve bridge resilience and sustainability through optimizing structural materials. The effect of HPFRCC on the life-cycle cost and long-term durability remains unknown. Further research is necessary to uncover the effect and reduce the life-cycle cost and improve durability. Self-healing properties should be considered.

  • This study focuses on the construction stages until the bridge collapsed. Although the use of HPFRCC is promising to avoid bridge collapse, it is unclear whether collapse will occur at a later stage. The whole lifecycle needs to be considered in future research to gain a holistic understanding of the safety and resiliency of bridges.

Availability of data and materials

Data will be made available on request.

References

  1. Lee GC, Mohan S, Huang C, Fard BN (2013) A study of US bridge failures (1980–2012). MCEER Buffalo https://www.eng.buffalo.edu/mceer-reports/13/13-0008.pdf. Accessed 1 Oct 2022

    Google Scholar

  2. Akiyama M, Frangopol DM, Ishibashi H (2020) Toward life-cycle reliability-, risk-and resilience-based design and assessment of bridges and bridge networks under independent and interacting hazards: emphasis on earthquake, tsunami and corrosion. Struct Infrastruct Eng 16(1):26–50. https://doi.org/10.1080/15732479.2019.1604770

    Article  Google Scholar

  3. Khandel O, Soliman M (2019) Integrated framework for quantifying the effect of climate change on the risk of bridge failure due to floods and flood-induced scour. J Bridg Eng 24(9):04019090. https://doi.org/10.1061/(ASCE)BE.1943-5592.0001473

    Article  Google Scholar

  4. Scattarreggia N, Salomone R, Moratti M, Malomo D, Pinho R, Calvi GM (2022) Collapse analysis of the multi-span reinforced concrete arch bridge of Caprigliola, Italy. Eng Struct 251:113375. https://doi.org/10.1016/j.engstruct.2021.113375

    Article  Google Scholar

  5. Nicoletta B, Kotsovinos P, Gales J (2020) Review of the fire risk, hazard, and thermomechanical response of bridges in fire. Can J Civ Eng 47(4):363–381. https://doi.org/10.1139/cjce-2018-0767

    Article  Google Scholar

  6. Deng L, Wang W, Yu Y (2016) State-of-the-art review on the causes and mechanisms of bridge collapse. J Perform Constr Facil 30(2):04015005. https://doi.org/10.1061/(ASCE)CF.1943-5509.0000731

    Article  Google Scholar

  7. Shi X, Xie N, Fortune K, Gong J (2012) Durability of steel reinforced concrete in chloride environments: an overview. Construct Build Mater 30:125–138. https://doi.org/10.1016/j.conbuildmat.2011.12.038

    Article  Google Scholar

  8. Swenson DV, Ingraffea AR (1991) The collapse of the Schoharie Creek bridge: a case study in concrete fracture mechanics. In: Current trends in concrete fracture research. Springer, Dordrecht, pp 73–92. https://doi.org/10.1007/978-94-011-3638-9_6

    Chapter  Google Scholar

  9. Hao S (2014) Minnesota I-35W steel bridge collapse: lessons learned and challenges revealed. Int J Forens Eng 2(1):29–70. https://doi.org/10.1504/IJFE.2014.059245

    Article  Google Scholar

  10. Sacconi S, Ierimonti L, Venanzi I, Ubertini F (2021) Life-cycle cost analysis of bridges subjected to fatigue damage. J Infrastruct Preserv Resilience 2(1):1–13. https://doi.org/10.1186/s43065-021-00040-3

    Article  Google Scholar

  11. National Transportation Safety Board. (2018). “Investigative update 1 (Aug. 09, 2018): collapse of pedestrian bridge under construction Miami, Florida (HWY18MH009).” https://www.ntsb.gov/investigations/AccidentReports/Reports/HWY18MH009-investigative-update.pdf. Accessed 22 Jan 2019

    Google Scholar

  12. Occupational Safety and Health Administration. (2019). “Investigation of march 15, 2018 pedestrian bridge collapse at Florida International University, Miami, FL.” https://www.osha.gov/doc/engineering/pdf/2019_r_03.pdf. Accessed 11 Jan 2022

    Google Scholar

  13. National Transportation Safety Board. (2019). "pedestrian bridge collapse over SW 8th street, Miami, Florida, March 15, 2018." highway accident report NTSB/HAR-19/02 PB2019–101363. https://www.ntsb.gov/investigations/AccidentReports/Reports/HAR1902.pdf. Accessed 11 Jan 2022

    Google Scholar

  14. Ghosn M, Yang J, Beal D, Sivakumar B (2014) Bridge system safety and redundancy. (no. NCHRP REPORT 776). National Cooperative Highway Research Program (NCHRP), Transportation Research Board, United States. https://doi.org/10.17226/22365 Accessed 22 Jan 2022

    Book  Google Scholar

  15. Mertz, D. R. (2012). “Steel bridge design handbook: redundancy. (no. FHWA-IF 12–052 - Vol. 9)” Office of Bridges and Structures, Federal Highway Administration, United States. https://rosap.ntl.bts.gov/view/dot/42893. Accessed 22 Jan 2022

  16. Khan MA (2014) Accelerated bridge construction: best practices and techniques. Elsevier, Amsterdam. https://doi.org/10.1016/C2011-0-08185-1

  17. Cao R, El-Tawil S, Agrawal AK (2020) Miami pedestrian bridge collapse: computational forensic analysis. J Bridg Eng 25(1):04019134. https://doi.org/10.1061/(ASCE)BE.1943-5592.0001532

    Article  Google Scholar

  18. Zhou X, Di J, Tu X (2019) Investigation of collapse of Florida International University (FIU) pedestrian bridge. Eng Struct 200:109733. https://doi.org/10.1016/j.engstruct.2019.109733

    Article  Google Scholar

  19. Peng W, Ding R, Xu W, Xu X, Dai F, Taciroglu E (2019) A forensic analysis of the Florida International University pedestrian bridge collapse using incident video footages. Eng Struct 200:109732. https://doi.org/10.1016/j.engstruct.2019.109732

    Article  Google Scholar

  20. Jiang L, Ye J, Zheng H (2019) Collapse mechanism analysis of the FIU pedestrian bridge based on the improved structural vulnerability theory (ISVT). Eng Fail Anal 104:1064–1075. https://doi.org/10.1016/j.engfailanal.2019.06.033

    Article  Google Scholar

  21. Klein, G. J. and Phipps, A. R. (2020) “ FIU pedestrian bridge collapse: testing of full size replicas of failed connection.” https://seaotdallas.org/event-3879520. Accessed 11 Jan 2022

    Google Scholar

  22. Engineering ethics: The collapse of the FIU pedestrian bridge, design & ethical failures. (2021). https://www.pdhsource.com/course/live-webinar-engineering-ethics-the-collapse-of-the-fiu-pedestrian-bridge/. Accessed 11 Jan 2022

  23. Li X, Wang J, Bao Y, Chen G (2017) Cyclic behavior of damaged reinforced concrete columns repaired with high-performance fiber-reinforced cementitious composite. Eng Struct 136:26–35. https://doi.org/10.1016/j.engstruct.2017.01.015

    Article  Google Scholar

  24. Liu Y, Zhang Q, Meng W, Bao Y, Bu Y (2019) Transverse fatigue behaviour of steel-UHPC composite deck with large-size U-ribs. Eng Struct 180:388–399. https://doi.org/10.1016/j.engstruct.2018.11.057

    Article  Google Scholar

  25. Meng W, Khayat KH (2016) Mechanical properties of ultra-high-performance concrete enhanced with graphite nanoplatelets and carbon nanofibers. Compos Part B 107:113–122. https://doi.org/10.1016/j.compositesb.2016.09.069

    Article  Google Scholar

  26. Meng W, Khayat KH, Bao Y (2018) Flexural behaviors of fiber-reinforced polymer fabric reinforced ultra-high-performance concrete panels. Cem Concr Compos 93:43–53. https://doi.org/10.1016/j.cemconcomp.2018.06.012

    Article  Google Scholar

  27. Huang BT, Yu J, Wu JQ, Dai JG, Leung CK (2020) Seawater sea-sand engineered cementitious composites (SS-ECC) for marine and coastal applications. Composites Commun 20:100353. https://doi.org/10.1016/j.coco.2020.04.019

    Article  Google Scholar

  28. Huang BT, Wang YT, Wu JQ, Yu J, Dai JG, Leung CK (2021) Effect of fiber content on mechanical performance and cracking characteristics of ultra-high-performance seawater sea-sand concrete (UHP-SSC). Adv Struct Eng 24(6):1182–1195. https://doi.org/10.1177/1369433220972452

    Article  Google Scholar

  29. Meng W, Valipour M, Khayat KH (2017) Optimization and performance of cost-effective ultra-high performance concrete. Mater Struct 50(1):29. https://doi.org/10.1617/s11527-016-0896-3

    Article  Google Scholar

  30. Xu M, Bao Y, Wu K, Xia T, Clack HL, Shi H, Li VC (2019) Influence of TiO2 incorporation methods on NOx abatement in engineered cementitious composites. Construct Build Mater 221:375–383. https://doi.org/10.1016/j.conbuildmat.2019.06.053

    Article  Google Scholar

  31. Xu M, Bao Y, Wu K, Shi H, Guo X, Li VC (2019) Multiscale investigation of tensile properties of a TiO2-doped engineered cementitious composite. Construct Build Mater 209:485–491. https://doi.org/10.1016/j.conbuildmat.2019.03.112

    Article  Google Scholar

  32. Graybeal, B. (2014). “Design and construction of field-cast UHPC connections (no. FHWA-HRT-14-084; HRDI-40/10–14 (750) E).” Federal Highway Administration. https://rosap.ntl.bts.gov/view/dot/28283. Accessed 11 Jan 2022

    Google Scholar

  33. Lepech MD, Li VC (2009) Application of ECC for bridge deck link slabs. Mater Struct 42(9):1185–1195. https://doi.org/10.1617/s11527-009-9544-5

    Article  Google Scholar

  34. Lu K, Xu Q, Li W, Hu Y, Wang J, Yao Y (2021) Fatigue performance of UHPC bridge deck system with field-cast dovetail joint. Eng Struct 237:112108. https://doi.org/10.1016/j.engstruct.2021.112108

    Article  Google Scholar

  35. Guo P, Meng W, Xu M, Li VC, Bao Y (2021) Predicting mechanical properties of high-performance fiber-reinforced cementitious composites by integrating micromechanics and machine learning. Materials 14(12):3143. https://doi.org/10.3390/ma14123143

    Article  Google Scholar

  36. Du J, Liu Z, Christodoulatos C, Conway M, Bao Y, Meng W (2022) Utilization of off-specification fly ash in preparing ultra-high-performance concrete (UHPC): mixture design, characterization, and life-cycle assessment. Resour Conserv Recycl 180:106136. https://doi.org/10.1016/j.resconrec.2021.106136

    Article  Google Scholar

  37. Li X, Lv X, Zhou X, Meng W, Bao Y (2022) Upcycling of waste concrete in eco-friendly strain-hardening cementitious composites: mixture design, structural performance, and life-cycle assessment. J Clean Prod 330:129911. https://doi.org/10.1016/j.jclepro.2021.129911

    Article  Google Scholar

  38. Isa MN, Pilakoutas K, Guadagnini M (2021) Determination of tensile characteristics and design of eco-efficient UHPC. Structures 32:2174–2194. https://doi.org/10.1016/j.istruc.2021.03.114

    Article  Google Scholar

  39. Li X, Xu Z, Bao Y, Cong Z (2019) Post-fire seismic behavior of two-bay two-story frames with high-performance fiber-reinforced cementitious composite joints. Eng Struct 183:150–159. https://doi.org/10.1016/j.engstruct.2019.01.015

    Article  Google Scholar

  40. Mahjoubi S, Barhemat R, Guo P, Meng W, Bao Y (2021) Prediction and multi-objective optimization of mechanical, economical, and environmental properties for strain-hardening cementitious composites (SHCC) based on automated machine learning and metaheuristic algorithms. J Clean Prod 329:129665. https://doi.org/10.1016/j.jclepro.2021.129665

    Article  Google Scholar

  41. Mahjoubi S, Meng W, Bao Y (2022) Auto-tune learning framework for prediction of flowability, mechanical properties, and porosity of ultra-high-performance concrete (UHPC). Appl Soft Comput 115:108182. https://doi.org/10.1016/j.asoc.2021.108182

    Article  Google Scholar

  42. Mahjoubi S, Barhemat R, Meng W, Bao Y (2023) AI-guided auto-discovery of low-carbon cost-effective ultra-high performance concrete (UHPC). Resour Conserv Recycl 189:106741. https://doi.org/10.1016/j.resconrec.2022.106741

  43. Li VC (2019) Engineered cementitious composites (ECC): bendable concrete for sustainable and resilient infrastructure. Springer, New York. https://doi.org/10.1007/978-3-662-58438-5

  44. Deb, K., Pratap, A., Agarwal, S. and Meyarivan, T.A.M.T. (2002). “A fast and elitist multiobjective genetic algorithm: NSGA-II.” IEEE Trans Evol Comput, 6(2), pp.182–197. https://doi.org/https://doi.org/10.1109/4235.996017

  45. FIU (Florida International University). (2019). “Public records requests related the bridge accident of March 15, 2018.” https://facilities.fiu.edu/projects/BT-904-PRR.htm. Accessed 22 Jan 2022

    Google Scholar

  46. Bao Y, Li VC (2020) Feasibility study of Lego-inspired construction with bendable concrete. Autom Constr 113:103161. https://doi.org/10.1016/j.autcon.2020.103161

    Article  Google Scholar

  47. Haber ZB, De la Varga I, Graybeal BA, Nakashoji B, El-Helou R (2018) Properties and behavior of UHPC-class materials (no. FHWA-HRT-18-036). Office of Infrastructure Research and Development, Federal Highway Administration, United States https://rosap.ntl.bts.gov/view/dot/37528. Accessed 22 Jan 2022

    Google Scholar

  48. Russell HG, Graybeal BA, Russell HG (2013) Ultra-high performance concrete: a state-of-the-art report for the bridge community. (no. FHWA-HRT-13-060). Office of Infrastructure Research and Development, Federal Highway Administration, United States https://rosap.ntl.bts.gov/view/dot/26387. Accessed 22 Jan 2022

    Google Scholar

  49. Yang I-H, Joh C, Kim B-S (2012) Flexural response predictions for ultra-high-performance fibre-reinforced concrete beams. Mag Concr Res 64(2):113–127. https://doi.org/10.1680/macr.10.00115

    Article  Google Scholar

  50. Abaqus Group (2011) Abaqus 6.11. In: Dassault Systemes Simulia Corp Providence, RI, USA http://193.136.142.5/v6.11/pdf_books/GUI.pdf. Accessed 22 Jan 2022

    Google Scholar

  51. The Florida Department of Transportation (FDOT). (2019). “Denney pate signed and sealed FIU bridge construction plans.” https://cdn2.fdot.gov/fiu/13-Denney-Pate-signed-and-sealed-FIU-bridge-construction-plans.pdf. Accessed 22 Jan 2022

    Google Scholar

  52. Jankowiak T, Lodygowski T (2005) Identification of parameters of concrete damage plasticity constitutive model. Foundations Civil Environ Eng 6(1):53–69 https://www.infona.pl/resource/bwmeta1.element.baztech-article-BPP1-0059-0053

    Google Scholar

  53. Shamass R, Zhou X, Alfano G (2015) Finite-element analysis of shear-off failure of keyed dry joints in precast concrete segmental bridges. J Bridg Eng 20(6):04014084. https://doi.org/10.1061/(ASCE)BE.1943-5592.0000669

    Article  Google Scholar

  54. ACI Committee 318 (2005) Building code requirements for structural concrete (ACI 318–05) and commentary (318R-05). American Concrete Institute, Farmington https://www.concrete.org/publications/internationalconcreteabstractsportal/m/details/id/14250

    Google Scholar

  55. Wtaife, S. A. M. (2019). “Design and analysis of Fiber reinforced concrete structure for transportation infrastructures.” Doctoral dissertation. http://hdl.handle.net/11141/2808

    Google Scholar

  56. Zhou J, Li M, Ye G, Schlangen E, van Breugel K, Li VC (2008) Modelling the performance of ECC repair systems under differential volume changes. In: Concrete repair, rehabilitation and retrofitting II. CRC Press, pp 381–382 http://acemrl.engin.umich.edu/wp-content/uploads/sites/412/2018/10/14-zhou-eccrepair-2008.pdf

    Google Scholar

  57. Fischer G, Stang H, Dick-Nielsen L (2007) Initiation and development of cracking in ECC materials: experimental observations and modeling. In: Proceedings of the 6th international conference on fracture mechanics of concrete and concrete structures, vol 3, pp 1517–1522 https://framcos.org/FraMCoS-6/333.pdf

    Google Scholar

  58. Hung CC, Lee HS, Chan SN (2019) Tension-stiffening effect in steel-reinforced UHPC composites: constitutive model and effects of steel fibers, loading patterns, and rebar sizes. Compos Part B 158:269–278. https://doi.org/10.1016/j.compositesb.2018.09.091

    Article  Google Scholar

  59. Shafieifar M, Farzad M, Azizinamini A (2017) Experimental and numerical study on mechanical properties of ultra high performance concrete (UHPC). Construct Build Mater 156:402–411. https://doi.org/10.1016/j.conbuildmat.2017.08.170

    Article  Google Scholar

  60. Wille K, Naaman AE, El-Tawil S, Parra-Montesinos GJ (2012) Ultra-high performance concrete and fiber reinforced concrete: achieving strength and ductility without heat curing. Mater Struct 45(3):309–324. https://doi.org/10.1617/s11527-011-9767-0

    Article  Google Scholar

  61. Zhan K, Yu J, Wang Y, Yu K (2017) Development of cementitious composites with tensile strain capacity up to 10%. In: RILEM Bookseries SHCC 2017: strain-hardening cement-based composites. Springer, Dordrecht, pp 147–153. https://doi.org/10.1007/978-94-024-1194-2_17

    Chapter  Google Scholar

  62. Ding Y, Yu J, Yu K, Xu SL (2018) Basic mechanical properties of ultra-high ductility cementitious composites: from 40 MPa to 120 MPa. Compos Struct 185:634–645. https://doi.org/10.1016/j.compstruct.2017.11.034

    Article  Google Scholar

  63. Yu K, Wang Y, Yu J, Xu S (2017) A strain-hardening cementitious composites with the tensile capacity up to 8%. Construct Build Mater 137:410–419. https://doi.org/10.1016/j.conbuildmat.2017.01.060

    Article  Google Scholar

  64. Wille K, El-Tawil S, Naaman AE (2014) Properties of strain hardening ultra high performance fiber reinforced concrete (UHP-FRC) under direct tensile loading. Cem Concr Compos 48:53–66. https://doi.org/10.1016/j.cemconcomp.2013.12.015

    Article  Google Scholar

  65. Li VC (2019) High-performance and multifunctional cement-based composite material. Engineering 5(2):250–260. https://doi.org/10.1016/j.eng.2018.11.031

    Article  Google Scholar

Download references

Funding

This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.

Author information

Authors and Affiliations

Authors

Contributions

Xiao Tan: Data curation, Visualization, Formal analysis, Investigation, Writing - original draft. Soroush Mahjoubi: Validation, Data curation, Formal analysis, Investigation, Writing - review & editing. Qinghua Zhang: Validation, Writing - review & editing. Daren Dong: Validation, Writing - review & editing. Yi Bao: Conceptualization, Methodology, Project administration, Supervision, Writing - review & editing. All authors reviewed the manuscript. The author(s) read and approved the final manuscript.

Corresponding author

Correspondence to Yi Bao.

Ethics declarations

Ethics approval

The results/data/figures in this manuscript have not been published elsewhere, nor are they under consideration by another publisher.

Competing interests

The author declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Supplementary Information

Additional file 1: Table S1.

Suggested hazard values [S1]. Table S2. Bridge importance factor [S2]. Table S3. Basic restoration time [S2]. Table S4. Adjustment factor α1 [S2]. Table S5. Adjustment factor α2 [S2]. Table S6. Adjustment factor αb [S2]. Table S7. Discrete resilience ranking scale [S2].

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Tan, X., Mahjoubi, S., Zhang, Q. et al. Optimizing high-performance fiber-reinforced cementitious composites for improving bridge resilience and sustainability. J Infrastruct Preserv Resil 3, 18 (2022). https://doi.org/10.1186/s43065-022-00067-0

Download citation

  • Received:

  • Revised:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s43065-022-00067-0

Keywords

  • High-performance fiber-reinforced cementitious composites (HPFRCC)
  • Redundancy
  • Optimization
  • Resilience
  • Sustainability
  • Strain-hardening cementitious composite (SHCC)
  • Ultra-high-performance concrete (UHPC)
