Probabilistic analysis of climate change impact on chloride-induced deterioration of reinforced concrete considering Nordic climate

Abstract

The impact of climate change on the deterioration of reinforced concrete elements have been frequently highlighted as worthy of investigation. This article addresses this important issue by presenting a time-variant reliability analysis to assess the effect of climate change on four limit states; the probabilities of corrosion initiation, crack initiation, severe cracking, and failure of a simply supported beam built in 2020 and exposed to chloride-induced corrosion. The historical and future climate conditions (as projected by three different emission scenarios) for different climate zones in Sweden are considered, including subarctic conditions where the impact of climate change may lead to large increases in temperature. The probabilities of all limit states are found to be: 1) higher for scenarios with higher GHG emissions and 2) higher for southern than for northern climate zones. However, the end-of-century impact of climate change on the probabilities of reaching the different limit states is found to be higher for northern than for southern climate zones. At 2100, the impact of climate change on the probability of failure can reach up to an increase of 123% for the northernmost zone. It is also noted that the end-of-century impact on the probability of failure is significantly higher (ranging from 3.5–4.9 times higher) than on the other limit states in all climate scenarios.

Introduction

The climate system is undergoing considerable changes compared to the climate of the preindustrial era [1]. These changes can have substantial implications for the safety and performance of concrete structures with their service lives spanning over several decades. Recent studies have identified a large number of potential climate change impacts on infrastructure and the built environment [2,3,4,5] including accelerated deterioration of infrastructure and built environment elements [6,7,8], increased long-term deformations [2], increased wind-induced loads [8, 9], and increased intensity and/or frequency of flooding [10].

Among the identified risks, infrastructure and built environment deterioration is often highlighted as a major concern, even when climate change impacts are disregarded. Globally, the annual cost of corrosion is estimated to surpass 1.8 trillion USD [11, 12]. Country-specific estimates of the cost of corrosion (see [13] for Australia, [14] for the United States, and [15] for the United Kingdom) highlight the substantial economic consequences of deterioration. In Sweden, the maintenance costs of bridges and tunnels totalled ~ 1 billion SEK in 2019 (~ 0.1 billion USD) [16]. In addition to these exceptionally high economic consequences, the failure of infrastructure and built environment elements due to severe deterioration can lead to more dire consequences related to risks to life and limb. The recent collapse of the Morandi Bridge over the Polcevera River, Genova, Italy in 2018 with 43 fatalities serves as an example of infrastructure failure that was, at least partly, attributed to deterioration [17, 18]. Another example is the recent collapse of the 12/13-story Champlain Towers South Condominium in Miami, Florida, the United States in 2021 with 98 fatalities [19, 20]. Although the exact causes of failure are still unclear, early investigations indicated extensive reinforcement corrosion as a likely cause among others. Hence, many recent studies highlight that assessing the impact of climate change on deterioration of the built environment is of paramount importance [6, 7, 11, 21, 22].

Noting that concrete is the most used construction material [23], studying the impact of climate change on the durability of concrete structural elements is especially attention-worthy. The current article addresses this important issue by probabilistically analyzing the impact of climate change on chloride-induced corrosion of reinforced concrete members in different climate zones, represented by four different Swedish counties; namely the southernmost county (Skåne), the northernmost county (Norrbotten), and two in-between counties (Uppsala and Gävleborg). For this purpose, a time-variant reliability analysis is presented to assess the effect of climate change on the probabilities of corrosion initiation, crack initiation, severe cracking, and failure of a simply supported beam exposed to chloride-induced corrosion. Furthermore, sensitivity analysis is conducted to compare the effect of climate change and changes in other parameters on the corrosion process. It should be mentioned that the validity of the used models for the various corrosion processes, like any model, has some limitations [24]. However, studying those limitations and improving the models is beyond the scope of the current paper. The main reason for choosing the selected models is their relative simplicity and the availability of previous studies that adopted them which facilitates the interpretation of the results in the current study. Although other deterioration mechanisms of reinforced concrete elements are possible (e.g., carbonation-induced corrosion [6, 25] and biodeterioration [26, 27]), chloride-induced corrosion is generally more damaging and more costly to repair [28]. Several recent studies have focused on probabilistically assessing the impact of climate change on chloride-induced corrosion [6, 7, 11, 25, 29,30,31]. However, none of these studies considered Nordic climate conditions with very different climate zones depending on the location. Furthermore, very few studies, if any, have explicitly considered all the limit states analyzed in the current study (i.e., corrosion initiation, crack initiation, severe cracking, and failure).

The article starts by briefly describing the different climate change scenarios and the projections of the environmental parameters involved in the analysis under these scenarios. The next section describes the chloride-induced corrosion modelling approach that is adopted in the study in detail. A section presenting an illustrative example of a simply supported beam that is exposed to chloride-induced corrosion is then introduced. Lastly, important discussion points and concluding remarks are highlighted.

Climate change scenarios and data

Several generations of climate change scenarios have been introduced in literature. In the study presented herein, the Representative Concentration Pathways (RCP) scenarios adopted in both the fifth and sixth assessment reports of the Intergovernmental Panel on Climate Change (IPCC) [1, 32] are considered. The RCP scenarios adopted are: 1) a low Greenhouse Gas (GHG) emissions scenario (referred to as RCP2.6) where strict regulations enforcing climate change mitigation would be implemented [33], 2) a high GHG emissions scenario (referred to as RCP8.5) that describes a highly energy-intensive future in the absence of climate change mitigation policies [34], and 3) a moderate emissions scenario (referred to as RCP4.5) that describes a future with GHG emission level that is between the other two scenarios [35]. It should be highlighted that under the current state of knowledge accurate probabilities cannot be reliably assigned to the different scenarios [36].

For producing the climate change data for the current study, the Rossby Centre regional Atmospheric climate model (RCA4) is adopted [37]. The RCA4 was operated over Europe at 50 × 50 km grid spacing. Aggregated data for the annual average relative humidity and temperature over each of the four studied counties is used. The climate change data used in the current study is based on RCA4 downscaling five different global climate models (GCMs) under RCP2.6, RCP 4.5, and RCP8.5. The different GCMs have been used in the context of CMIP5 (the fifth phase of the coupled model intercomparison project), see [38]. The five downscaled GCMs are: 1) EC-EARTH, 2) MIROC5, 3) HadGEM2-ES, 4) MPI-ESM-LR, and 5) NorESM1-M. These GCMs provided boundary conditions for producing the data used herein. Details about the five downscaled GCMs, respectively, can be found in [39,40,41,42,43]. A more elaborate description of the RCA4 climate projections can be found in [37]. The projections of the annual average relative humidity and temperature for the four considered counties are shown in Fig. 1. Large interannual variability is observed for both relative humidity and temperature projections. The interannual variability related to relative humidity is smaller for northern (i.e., Norrbotten) than for southern counties (i.e., Skåne). It can generally be noted that Norrbotten has the highest while Skåne has the lowest relative humidity. On the other hand, Skåne has the highest while Norrbotten has the lowest temperature. For relative humidity, there is virtually no clear trend in all counties except Norrbotten where an increasing trend over time is observed. For temperature, on the other hand, a clear warming trend is observed for all counties (particularly in the highest emissions scenario, i.e., RCP8.5). For Monte Carlo simulation in Sect. 4, the annual average relative humidity and temperature data for each RCP scenario were fitted to a normal distribution.

Fig. 1
figure 1

Projections of the annual average values of relative humidity and temperature for Skåne, Uppsala, Gävleborg, and Norrbotten; counties are ordered from south (left) to north (right); multiple lines for each scenario represent different climate projections based on the five used GCMs (EC-EARTH, MIROC5, HadGEM2-ES, MPI-ESM-LR, and NorESM1-M)

Modelling chloride-induced corrosion

Reinforcement steel in sound concrete is surrounded by a passive oxide film. This passive layer is formed due to the high alkalinity of the concrete pore solution [44, 45]. Exposure to chlorides (from, e.g., sea salt spray, seawater wetting, and/or deicing salts), however, can lead to the breakdown of this protective layer and subsequently corrosion of reinforcement steel. The corrosion process is described by two phases [6, 25, 29, 45]: 1) the corrosion initiation phase and 2) the corrosion propagation phase. The time it takes for chlorides to penetrate to the level of the reinforcement and accumulate in sufficient quantities to break down the protective film and initiate the corrosion process (i.e., reach a critical chloride concentration) is known as the corrosion initiation time. Following corrosion initiation, the corrosion propagation phase starts. This phase is governed by the reinforcement corrosion rate (i.e., corrosion current density). The formation of rust due to corrosion propagation (which can have a volume that is twice to six times that of the corroded steel [46]) results in internal stresses which lead to cover cracking and eventually spalling of the concrete surrounding the reinforcement. The remainder of this section outlines the models used in this article to describe the corrosion process.

Time to corrosion initiation

Several models can be found in literature for estimating the corrosion initiation time [47,48,49]. One of the most widely used models is the model proposed in [48] based on Fick’s second law of diffusion [6, 25, 29, 50, 51]. Based on this model the corrosion initiation time \(({t}_{i})\) [\(years\)] is calculated as follows:

$$t_i=\delta_{t_i}{\cdot\left[\frac{x^2}{4\cdot k_e\cdot k_c{\cdot k}_t{\cdot D}_c(T,RH){\cdot t}_0^{n_{cl}}}{\cdot\left[{erf}^{-1}\left(1-\frac{C_{cr}}{C_s}\right)\right]}^{-2}\right]}^\frac1{1-n_{cl}}$$
(1)

where \({\delta }_{{t}_{i}}\) is a model uncertainty factor to account for the idealization implied by Fick’s second law, \(x\) is the concrete cover depth [\(mm\)], \({k}_{e}\), \({k}_{c}\), and \({k}_{t}\) are environment, curing, and test method factors respectively, \({D}_{c}(T,RH)\) is the chloride diffusion coefficient as a function of temperature \((T)\) and relative humidity \((RH)\), \({t}_{0}\) is the reference time [\(years\)], \({n}_{cl}\) is age factor, \({erf}^{-1}\) represents the inverse of the Gaussian error function, and \({C}_{cr}\) and \({C}_{s}\) are the critical chloride concentration and the chloride concentration at the reinforcement surface, respectively. In Eq. (1), the dependency of \({D}_{c}(T,RH)\) on \(T\) and \(RH\) is evaluated as follows [25]:

$$D_c\left(T,RH\right)=D_{c,ref}{\cdot F}_1(T){\cdot F}_2(RH)$$
(2)

with

$$F_1\left(T\right)=e^{\frac{U_c}R\cdot\left(\frac1{T_{ref}}-\frac1{273+T}\right)}$$
(3)
$${F}_{2}\left(RH\right)={e}^{{\left(1+\frac{{\left(1-RH\right)}^{4}}{{\left(1-{RH}_{c}\right)}^{4}}\right)}^{-1}}$$
(4)

where \({D}_{c,ref}\) is the reference diffusion coefficient at a reference temperature of 20 °C (i.e.,\({T}_{ref}=293 K\)) and a reference relative humidity of 75% (i.e.,\({RH}_{c}=0.75\)), \({U}_{c}\) and \(R\) are the activation energy of chloride diffusion process (\(4\times {10}^{4}\frac{J}{mol}\)) and the gas constant (\(8.314 \frac{J}{mol\cdot K}\)) respectively, and \(T\) and \(RH\) are the temperature [\(^\circ{\rm C}\)] and the relative humidity in decimals (e.g., 0.8 for 80% relative humidity), respectively.

Corrosion rate

Similar to the corrosion initiation time, several models for predicting the corrosion rate can be found in literature, see [24] for a comparison between a number of different models. For the purpose of the current article, the model proposed by [52] is used along with the temperature, relative humidity, and chloride concentration modification factors proposed by [53], see also [25, 29]:

$$i_{corr}\left(t\right)=\delta_{i_{corr}}\cdot\left[\frac{37.8{\cdot(1-\frac wc)}^{-1.64}}x\cdot0.85\cdot{(t-t_i)}^{-0.29}\cdot f_T\cdot f_{RH}\cdot f_{Cl}\right]$$
(5)

where \({i}_{corr}\left(t\right)\) is the corrosion current density [\(\frac{\mu A}{{cm}^{2}}\)], \({\delta }_{{i}_{corr}}\) is a model uncertainty factor (represented by a Weibull distribution with a mean of 1.355 and a coefficient of variation (COV) of ~ 0.57 [24]), \(\frac{w}{c}\) is the water to cement ratio, \(t\) is the concrete age [\(years\)], \({f}_{T}\) is a modification factor accounting for a temperature deviation from the 20 °C reference temperature considered in [52], \({f}_{RH}\) is a modification factor accounting for a relative humidity deviation from the 75% reference relative humidity considered in [52], and \({f}_{Cl}\) is a modification factor accounting for the increase in chloride concentration during the propagation phase. The different modification factors are evaluated as follows [25, 29]:

$$f_T=(1+K_T\;\left[T-20\right])$$
(6)

with

$$K_T=\left\{\begin{array}{c}\begin{array}{cc}0.025&if\;T\leq20^\circ\mathrm C\end{array}\\\begin{array}{cc}0.073&if\;T>20^\circ\mathrm C\end{array}\end{array}\right.$$
(7)

and

$${f}_{RH}={e}^{-6000{\left(\frac{RH-0.75}{1}\right)}^{6}}$$
(8)
$$f_{Cl}=\frac{C_s+C_{cr}}{2\cdot C_{cr}}$$
(9)

It is worth highlighting that varying values for the model uncertainty factor \({(\delta }_{{i}_{corr}})\) can be found in literature [24, 25, 52]. The value adopted in the current study is based on recent findings in [24]. In Lu et al. [24], the authors compared the predictions of the corrosion rate model adopted herein, as well as seven other models, to experimental results and found that the model uncertainty factor \({(\delta }_{{i}_{corr}})\) is best described by a Weibull distribution with a mean of 1.355 and a COV of ~ 0.57. However, Vu and Stewart [52] assumed a uniform distribution with a mean of 1.0 and a COV of 0.2 for this factor. It should be noted that, the different estimates of this factor do not take into account the three aforementioned modification factors (i.e., \({f}_{T}\), \({f}_{RH}\), and \({f}_{Cl}\)) which would be expected to improve the model predictions (i.e., reduce the uncertainty). Deriving more reliable estimates of this uncertainty factor should be addressed in future studies.

Time to initiation of cover cracking

Similar to both the corrosion initiation time and the corrosion rate, various models exist for the prediction of corrosion-induced cover cracking [54]. In the current article, the model developed by [55] and later recommended in DuraCrete [48] is adopted. The time to corrosion-induced cover cracking is predicted as follows [54]:

$$x_{cr}=83.8+7.4\cdot\frac x{d_{r,0}}-22.6\cdot f_{ct}$$
(10)
$$t_{cr}=\frac{x_{cr}}{11.6\cdot i_{corr}}+t_i$$
(11)

where \({d}_{r,0}\) is the initial reinforcement bar diameter [\(mm\)], \({f}_{ct}\) is the splitting tensile strength of concrete [\(MPa\)], \({x}_{cr}\) is the critical corrosion penetration at which cover cracking occurs [\(\mu m\)], and \({t}_{cr}\) is the age at which cover cracking initiates [\(years\)].

Time to severe cracking (i.e., spalling)

Similar to the time to corrosion initiation, corrosion rate, and the time to crack initiation, several models that describe crack propagation can be found in literature [56, 57]. In the current article, the model developed by [57] is adopted. The age when a limit crack width \({w}_{lim} [mm]\) is reached can be evaluated as follows:

$$t_{sp}=k_R\cdot\frac{w_{lim}-0.05}{k_{Conf.}\cdot\delta_{r_{crack}}\cdot r_{crack}}\cdot\frac{0.0114}{i_{corr-20}}+t_{cr}$$
(12)

where \({t}_{sp}\) is the age of severe cracking (i.e., the time when \({w}_{lim}\) is reached, also referred to as concrete spalling) [\(years\)], \({k}_{Conf.}\) is the confinement factor that represents the effect of confinement on crack propagation (taken as 1.0 [6]), \({\delta }_{{r}_{crack}}\) represents the model uncertainty factor for the rate of crack propagation model (represented by a normal distribution with a mean of 1.04 and a COV of 0.09 [6]), \({i}_{corr-20}\) is the corrosion current density [\(\frac{\mu A}{{cm}^{2}}\)] at 20 °C (represented by a lognormal distribution with a mean of 2.586 and COV of 0.67 for elements under cyclic wetting and drying [6, 48]), \({k}_{R}\) is the rate of loading correction factor, and \({r}_{crack}\) is the rate of crack propagation [\(\frac{mm}{hr}\)]. In the current article, similar to in [6], severe cracking is represented by a limit crack width of 1 mm. \({k}_{R}\) and \({r}_{crack}\) are evaluated using Eqs. (13), (14) and (15), respectively [6]:

$${k}_{R}\approx 0.95\cdot \left[{e}^{-\frac{0.3\cdot {i}_{corr(exp)}}{{i}_{corr-20}}}-\frac{{i}_{corr(exp)}}{2500\cdot {i}_{corr-20}}+0.3\right]$$
(13)
$$r_{crack}=0.0008\cdot e^{-1.7\psi_{cp}}$$
(14)

with

$$\psi_{cp}=\frac x{d_{r,0}\cdot f_t}$$
(15)

where \({i}_{corr(exp)}\) is the accelerated corrosion rate used to derive \({r}_{crack}\) (100 \(\frac{\mu A}{{cm}^{2}}\) [6]), \({\psi }_{cp}\) is a cover cracking parameter, and \({f}_{t}\) is the direct tensile strength of concrete [\(MPa\)].

Loss of reinforcing steel area

Chloride-induced corrosion of reinforcement in concrete structures can be divided into two types: 1) uniform corrosion and 2) pitting corrosion [44, 45, 58], see Fig. 2. Uniform corrosion (also referred to as general corrosion), as the name implies, results in a uniform loss of metal over the perimeter of a reinforcing bar. On the other hand, pitting corrosion is non-uniform over the perimeter of a reinforcing bar and results in a more localized loss of metal. In this subsection, the models used to assess the loss of reinforcing steel area due to both types of corrosion are outlined.

Fig. 2
figure 2

Uniform and pitting corrosion, hatching indicates corroded steel

Uniform corrosion

The time-dependent cross-sectional area of one steel reinforcement bar due to uniform corrosion (\({A}_{st,U}\left(t\right)\)) can be evaluated as follows [47]:

$$A_{st,U}\left(t\right)=\left\{\begin{array}{lc}d_{r,0}^2\cdot\frac\pi4&if\;t\leq t_i\\{d_r(t)}^2\cdot\frac\pi4&if\;t_i<t\;<t_i+\frac{d_{r,0}}{r_{corr}}\\0&if\;t\geq t_i+\frac{d_{r,0}}{r_{corr}}\end{array}\right.$$
(16)

where \({d}_{r,0}\) is the initial reinforcement bar diameter before corrosion [\(mm\)], \({d}_{r}(t)\) is the reinforcement bar diameter at age \(t\) [\(mm\)], and \({r}_{corr}\) is the annual metal loss per unit surface area [\(\frac{mm}{year}\)]. \({d}_{r}(t)\) and \({r}_{corr}\) are evaluated as in Eqs. (17) and (18), respectively, based on \({i}_{corr}\) [\(\frac{\mu A}{{cm}^{2}}\)] [25, 47]:

$$d_r\left(t\right)=d_{r,0}-0.0232\cdot\int_{t_i}^ti_{corr}\left(t\right)dt$$
(17)
$$r_{corr}=0.0116\cdot i_{corr}$$
(18)

Pitting corrosion

One of the most frequently used models for estimating the loss of reinforcement bar cross-sectional area due to pitting corrosion is the hemispherical model developed by Val and Melchers [59]. Based on this model, the residual cross-sectional area of one reinforcing steel bar after the formation of a deep pit (\({A}_{st,DP}\left(t\right)\)) can be calculated as follows:

$$A_{st,DP}\left(t\right)=\left\{\begin{array}{lc}A_{st,0}-A_1-A_2&if\;p(t)\leq\frac{d_{r,0}}{\sqrt2}\\A_1-A_2&if\;\frac{d_{r,0}}{\sqrt2}<p(t)\leq d_{r,0}\\0&p(t)>d_{r,0}\end{array}\right.$$
(19)

with

$$A_1=\frac12\cdot\left(\theta_1{\cdot\left(\frac{d_{r,0}}2\right)}^2-a\cdot\left|\frac{d_{r,0}}2-\frac{{p(t)}^2}{d_{r,0}}\right|\right)$$
(20)
$$A_2=\frac12\cdot\left(\theta_2{\cdot p(t)}^2-a\cdot\frac{{p(t)}^2}{d_{r,0}}\right)$$
(21)
$$\theta_1=2\cdot arcsin\left(\frac a{d_{r,0}}\right)$$
(22)
$$\theta_2=2\cdot arcsin\left(\frac a{2\cdot p(t)}\right)$$
(23)
$$a=2\cdot p(t)\cdot\sqrt{1-\left(\frac{p(t)}{d_{r,0}}\right)^2}$$
(24)
$$p\left(t\right)=0.0116\cdot i_{corr}\cdot(t-t_i)\cdot R$$
(25)

where \({A}_{st,0}\) is the original reinforcement area before corrosion [\({mm}^{2}\)], \(p(t)\) is the pitting penetration at time \(t\) [\(mm\)], \(a\) is the width of a deep pit [\(mm\)], and \(R\) is the ratio between the maximum penetration of pitting to the average penetration of uniform corrosion. Varying values of \(R\) can be found in literature [44]. For instance, according to [60] this ratio can be modelled as following a Gumbel distribution with parameters depending on the bar surface area and length. On the other hand, in [61] this ratio is assumed as uniformly distributed between 4.0 and 6.0. The latter distribution is adopted in the current article. Following the evaluation of \({A}_{st,U}\left(t\right)\) and \({A}_{st,DP}\left(t\right)\), the residual cross-sectional area of one reinforcing steel bar at a pit location due to both uniform and pitting corrosion (\({A}_{st,U+P}\)) [\({mm}^{2}\)] can be computed as follows [25, 58]:

$$A_{st,U+P}=\left(A_{st,U}\left(t\right)-A_{st,0}\right)\cdot\left(1-\frac a{2\cdot d_{r,0}}\right)+A_{st,DP}(t)$$
(26)

Effect of corrosion on steel strength

In addition to the reduction of reinforcement cross-sectional area, corrosion also affects the mechanical properties [62] and ductility [63] of reinforcement steel. Both the ductility and strength of reinforcement steel are reduced by corrosion (see also [64]). However, this reduction is relatively small compared to the reduction in the cross-sectional area (see Sect. 3.5) [62]. In the current article, the effect of corrosion on the reinforcement yield strength is considered as follows [62, 65]:

$$f_y\left(t\right)=\left(1-\delta_{Q_{cr}}\cdot Q_{cr}\right)\cdot f_{y,0}$$
(27)

with

$${Q}_{cr}=\frac{{A}_{st,0}-{A}_{st,U+P}(t)}{{A}_{st,0}}$$
(28)

where \({\delta }_{{Q}_{cr}}\) is a model uncertainty factor, \({f}_{y,0}\) is the initial yield strength before corrosion and \({f}_{y}\left(t\right)\) is the yield strength at age \(t\). Although it is acknowledged that reinforcement corrosion has several other effects (e.g., reduction of concrete strength, reduction of steel–concrete bond strength, reduction of low cycle fatigue and buckling strength [29, 64]), these effects are not considered in the current article.

Effect of climate change on the deterioration of a simply supported beam and its long-term flexural reliability

As shown by the models in the previous section, changes to the annual average relative humidity and temperature due to climate change affect the corrosion process by altering the corrosion initiation time (due to changing the diffusion coefficient) and the corrosion rate which subsequently affect the other models presented. In this section the effect of climate change on chloride-induced corrosion of a simply supported beam exposed to marine environment and its long-term reliability are analyzed using Monte Carlo simulation. For this purpose, three different climate change scenarios (i.e., RCP2.6, RCP4.5, and RCP8.5) as well as the historical climate (1961–1990) are considered for four different Swedish counties (see Fig. 3.); namely the southernmost county (Skåne), the northernmost county (Norrbotten), and two in-between counties (Uppsala and Gävleborg). The considered example is adapted from Val [44] and is shown in Fig. 4. It is assumed that the beam is built in 2020 and was cured for 28 days. Additionally, the beam is assumed to be under atmospheric exposure conditions and to be exposed to many humid-dry cycles. The beam is subjected to uniformly distributed dead and live (sustained and extraordinary) loads. As in [44], the ratio of the nominal values of the live \(\left({Q}_{n}\right)\) and dead \(\left({G}_{n}\right)\) loads is assumed as \(\frac{{Q}_{n}}{{G}_{n}}=1.75\) with \({Q}_{n}=35 \frac{kN}{m}\) and \({G}_{n}=20 \frac{kN}{m}\). The beam has a length of 10 m, a height of 0.8 m, a width of 0.35 m and is reinforced with nine No. 8 bars. This example is suitable for the purpose of the current article as it does not involve the assessment of climate change impacts on environmental loads (e.g., snow, temperature, or wind loads) which is out of the scope of the current article. However, it should be highlighted that the considered example is only illustrative, and the same procedure adopted herein can be generally applied to other cases.

Fig. 3
figure 3

Map of Sweden illustrating the four studied counties

Fig. 4
figure 4

The studied simply supported beam

As in previous studies, e.g., [65], the maximum bending moment at mid span is considered for assessing the flexural reliability of the beam. Although failure can occur at other sections along the beam due to pitting corrosion [44], this is not considered herein. The following limit state function is considered [65]:

$$g\left(t\right)=\delta_{M_R}\cdot n\cdot A_{st,U+P}\left(t\right)\cdot f_y\left(t\right)\cdot\left(d-K_{M_R}\cdot\frac{{n\cdot A}_{st,U+P}\left(t\right)\cdot f_y\left(t\right)}{b\cdot f_c}\right)-M_S$$
(29)

with

$$M_S=\frac{\left({G+Q}_S+Q_E\right)\cdot L^2}8$$
(30)

where \({\delta }_{{M}_{R}}\) is the flexural resistance model uncertainty factor, \(d\) is the effective depth of the cross section [\(mm\)], \({K}_{{M}_{R}}\) represents the flexural resistance ratio, \(b\) is the section width [\(mm\)], \({f}_{c}\) is the compressive strength of concrete [\(MPa\)], \({M}_{S}\) is the applied bending moment at midspan [\(N\cdot mm\)], \(G\) is the dead load \(\left[\frac{kN}{m}\right]\), \({Q}_{s}\) is the sustained live load \(\left[\frac{kN}{m}\right]\), \({Q}_{E}\) is the extraordinary live load \(\left[\frac{kN}{m}\right]\), and \(L\) is the beam length [\(mm\)]. Failure is defined as the event that \(g(t)\) becomes less than or equal to zero (i.e., the beam flexural resistance is lower than or equal to the applied bending moment):

$${P}_{f}(t)=P(g(t)\le 0)$$
(31)

where \({P}_{f}(t)\) is the probability of failure at time \(t\). The variables considered in this illustrative example are shown in Table 1.

Table 1 Variables considered in the illustrative example

Probability of corrosion initiation, crack initiation, and severe cracking

Figures 5, 6 and 7 show the probabilities of corrosion initiation, crack initiation and severe cracking (i.e., spalling), respectively, under historical (1961–1990) and future climate conditions for the four studied counties. It can be seen that the probability of corrosion initiation is higher for scenarios with higher GHG emissions. This is mainly due to the higher annual average temperatures in these scenarios. Although the increasing trend of the relative humidity in Norrbotten (see Fig. 1) can also have a negative effect on corrosion initiation (i.e., can accelerate corrosion initiation), the negative effect of the increasing trend of the temperature is significantly higher. For all climate scenarios, the probability of corrosion initiation is highest for Skåne followed by Uppsala, Gävleborg, and Norrbotten, respectively (i.e., decreasing trend from south to north).

Fig. 5
figure 5

Probability of corrosion initiation for the studied beam under the historical (19611990) and future climatic conditions for Skåne, Uppsala, Gävleborg, and Norrbotten

Fig. 6
figure 6

Probability of crack initiation for the studied beam under the historical (19611990) and future climatic conditions for Skåne, Uppsala, Gävleborg, and Norrbotten

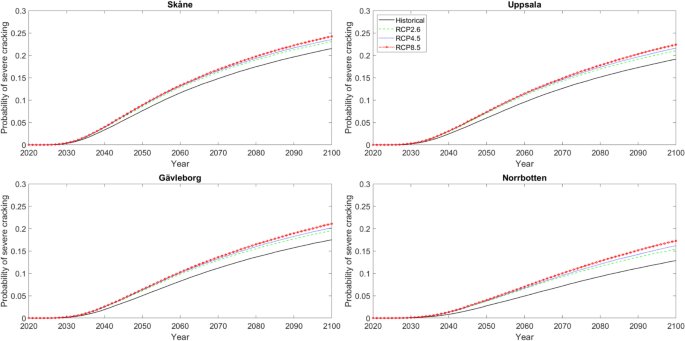

Fig. 7
figure 7

Probability of severe cracking for the studied beam under the historical (19611990) and future climatic conditions for Skåne, Uppsala, Gävleborg, and Norrbotten

The probabilities of crack initiation and severe cracking show trends similar to the probability of corrosion initiation; i.e., 1) The probabilities are higher for RCP8.5 followed by RCP4.5, RCP2.6, and the historical climate, respectively, and 2) the probabilities are higher for Skåne, followed by Uppsala, Gävleborg, and Norrbotten, respectively. While the end-of-century probability of crack initiation is approximately identical to the probability of corrosion initiation for all counties in all climate scenarios, the end-of-century probability of severe cracking varies from ~ 0.22 to ~ 0.24 for Skåne, ~ 0.19 to ~ 0.22 for Uppsala, ~ 0.18 to ~ 0.21 for Gävleborg, and ~ 0.13 to ~ 0.17 for Norrbotten depending on the climate scenario.

It is interesting to note that the probability of corrosion initiation (e.g., 0.2605 for Skåne at the end of century in RCP8.5) is very close to the probability of crack initiation (e.g., 0.2558 for Skåne at the end of century in RCP8.5) for all counties in all scenarios. This indicates that the time from corrosion initiation until crack initiation is very short compared to the time from the beginning of service life until corrosion initiation. This is in line with previous literature, see, e.g., [6]. Furthermore, the probability of severe cracking (e.g., 0.2424 for Skåne at the end of century in RCP8.5) is also close to the probability of corrosion initiation for all counties in all scenarios. This is also consistent with the findings of other studies, see, e.g., [6].

Table 2 presents the trends of the end-of-century percentage increases in the probabilities of corrosion initiation, crack initiation, and severe cracking due to the different climate change scenarios. It is observed that the percentage increase in these probabilities is highest for Norrbotten followed by Gävleborg, Uppsala, and Skåne, respectively (i.e., an increasing trend from south to north). For Skåne and Uppsala, the end-of-century percentage increase in the probabilities of corrosion initiation, crack initiation, and severe cracking vary from ~ 7% to ~ 13% for Skåne and ~ 9% to ~ 17% for Uppsala (see Table 2). This is generally in line with the observations of Stewart et al. [6] for Sydney and Darwin. For Gävleborg and Norrbotten, on the other hand, the percentage increases in the probabilities of corrosion initiation, crack initiation, and severe cracking can reach up to ~ 20% for Gävleborg and ~ 34% for Norrbotten. Furthermore, Table 2 shows that the percentage increase in the probability of severe cracking is higher than or equal to that in the probability of crack initiation which in turn is higher than or equal to that in the probability of corrosion initiation. For instance, the percentage increases in the probabilities of corrosion initiation, crack initiation, and severe cracking in RCP8.5 for Norrbotten are ~ 33%, ~ 34%, and ~ 34%, respectively.

Table 2 Trends in the end-of-century percentage increases in the probabilities of corrosion initiation, crack initiation, and severe cracking due to climate change for Skåne, Uppsala, Gävleborg, and Norrbotten

Time-variant flexural reliability analysis

Figure 8 shows the probability of failure of the studied beam under the historical (1961–1990) and the future climatic conditions in Skåne, Uppsala, Gävleborg, and Norrbotten. From Fig. 8 it can be observed that the probability of failure in all counties is highest in RCP8.5 followed by RCP4.5, RCP2.6, and the historical climate, respectively. It can also be observed that the probability of failure in all climate scenarios is highest in Skåne followed by Uppsala, Gävleborg, and Norrbotten, respectively. These trends are similar to the trends observed for the probabilities of corrosion initiation, crack initiation, and severe cracking in the previous section.

Fig. 8
figure 8

Probability of failure for the studied beam under the historical (19611990) and future climatic conditions for Skåne, Uppsala, Gävleborg, and Norrbotten

Figure 9 presents the percentage increase in the probability of failure of the studied beam under the three different RCP scenarios for Skåne, Uppsala, Gävleborg, and Norrbotten. The end-of-century percentage increase in the probability of failure is considerably higher (ranging from 3.5–4.9 times higher) than that in the probability of reaching the other limit states. For Norrbotten, for instance, the end-of-century percentage increase in the probability of failure in RCP8.5 is +  ~ 123% while the corresponding percentage increase in the probabilities of corrosion initiation, crack initiation, and severe cracking are +  ~ 32.6%, +  ~ 34.3%, and +  ~ 34.4%, respectively. Similar to the percentage increases in the probabilities of corrosion initiation, crack initiation, and severe cracking, an increasing trend of the end-of-century percentage increase in the probability of failure can be observed from south to north (i.e., the percentage increase is lowest for Skåne followed by Uppsala, Gävleborg, and Norrbotten). Nonetheless, Fig. 9 reveals that the impact of climate change on the probability of failure depends on the reference period considered. At mid-century, for instance, the aforementioned increasing trend of the percentage increase in the probability of failure from south to north is reversed (i.e., southern counties have higher percentage increases than northern counties).

Fig. 9
figure 9

Percentage change in the probability of failure for the studied beam under the future climatic conditions compared to the historical climate (19611990)

Sensitivity analysis

To assess the effect of changes in the different parameters involved in the corrosion process and compare this effect to the effect of climate change, a sensitivity analysis is presented herein. Changes to the annual average relative humidity and temperature due to climate change affect the corrosion process by altering the corrosion initiation time and the corrosion rate which subsequently affect the other models presented in Sect. 3. Therefore, the sensitivity analysis in this subsection is limited to the corrosion initiation and corrosion rate models. The sensitivity analysis is conducted by varying the mean value of each of the input parameters in these two models (one parameter at a time) in the range of -20% – + 20% and assessing the change in the output.

Figure 10 presents the percentage change in the end-of-century probability of corrosion initiation considering the historical climate due to changes in the different input parameters in the corrosion initiation model. It can be observed that changes in the parameters \({C}_{cr}\), \({C}_{s}\), \({n}_{cl}\), and \(x\) have the highest effect on the end-of-century probability of corrosion initiation. For instance, a 20% increase in the mean surface chloride concentration \({(C}_{s})\) in Skåne causes ~ 32% increase in the end-of-century probability of corrosion initiation. This effect is close to three times higher than the effect of climate change in the highest emission’s scenario (i.e., RCP8.5), see Table 2. The parameters \({k}_{e}\), \({k}_{c}\), \({k}_{t}\), and \({D}_{c,ref}\) have similar effects ranging from an increase of 11% – 18% and a decrease of -20% – -13% in the probability of corrosion initiation due a 20% increase and decrease, respectively, in their mean values. A 20% increase in the mean value of \({\delta }_{{t}_{i}}\) causes a reduction in the range of -14% – -9% while a 20% decrease causes an increase in the range of 12% – 17% in the probability of corrosion initiation. \({t}_{0}\) has only a minor effect of less than 3% increase or reduction in the probability of corrosion initiation for a 20% increase or reduction in its value, respectively.

Fig. 10
figure 10

Percentage change in the end-of-century probability of corrosion initiation due to changes in the mean value of the different input parameters in the corrosion initiation model considering the historical climate (1961–1990)

A reduction in the annual average relative humidity can have a significant effect on the probability of corrosion initiation (a 20% reduction in the mean annual average relative humidity in Skåne causes ~ 35% reduction in the probability of corrosion initiation). On the other hand, a 20% increase in the mean annual average relative humidity causes only a moderate increase in the probability of corrosion initiation (~ 13% in Skåne). Changes in the mean annual average temperature have a smaller effect on the probability of corrosion initiation (limited to ~ 6.6% for a 20% change in the mean annual average temperature). It is important to note, however, that climate change can cause an increase in the mean annual average temperature of up to ~ 145% in the studied counties while its effect on the mean annual relative humidity is limited to less than 3%. The sensitivity of the probability of corrosion initiation to the different input parameters is summarized in Fig. 11. This sensitivity is assessed based on the average absolute slope of the lines in Fig. 10 in the range of -1% – 1% change in the mean value of each parameter.

Fig. 11
figure 11

The sensitivity of the end-of-century probability of corrosion initiation to the different input parameters

Figure 12 presents the percentage change in the mean value of the end-of-century corrosion rate considering the historical climate due to changes in the different input parameters in the corrosion initiation and corrosion rate models. It can be observed that changes in the mean values of \(\frac{w}{c}\) and the annual average relative humidity have the highest effect on the mean value of the end-of-century corrosion rate. For instance, a 20% increase in the mean value of \(\frac{w}{c}\) in Skåne causes ~ 115% increase in the mean value of the end-of-century corrosion rate. It should be noted that, in addition to directly affecting the corrosion rate as seen in Eq. (5), \(\frac{w}{c}\) also affects \({C}_{s}\) (see the caption of Table 1). Following \(\frac{w}{c}\) and the annual average relative humidity, changes in the parameters \({C}_{cr}\), \({C}_{s}\), \({n}_{cl}\), and \(x\) have the next highest effect on the mean value of the corrosion rate. As an example, a 20% increase in the mean surface chloride concentration \(({C}_{s})\) in Skåne causes ~ 47% increase in the mean value of the end-of-century corrosion rate. A 20% increase in the mean value of \({\delta }_{{i}_{corr}}\) causes an increase in the vicinity of 20% while a 20% decrease causes a decrease in the vicinity of -20% in the mean value of the end-of-century corrosion rate. A 20% increase and decrease in the mean annual average temperature in Skåne causes changes of + 12% or -11%, respectively, in the mean value of the corrosion rate. Changes in the parameters \({\delta }_{{t}_{i}}\), \({t}_{0}\), \({k}_{e}\), \({k}_{c}\), \({k}_{t}\), and \({D}_{c,ref}\) have similar effects to those on the probability of corrosion initiation. The sensitivity of the mean value of the end-of-century corrosion rate to the different input parameters is summarized in Fig. 13. This sensitivity is assessed based on the average absolute slope of the lines in Fig. 12 in the range of -1% – 1% change in the mean value of each parameter.

Fig. 12
figure 12

Percentage change in the mean value of the end-of-century corrosion rate due to changes in the mean value of the different input parameters in the corrosion initiation and corrosion rate models considering the historical climate (1961–1990)

Fig. 13
figure 13

The sensitivity of the mean value of the end-of-century corrosion rate to the different input parameters

Discussion and conclusions

In the current article, the impact of climate change on chloride-induced corrosion of reinforced concrete structures was studied considering the Swedish climate conditions. It was found that the impact of climate change on the probability of failure can be considerable (reaching up to +  ~ 123% increase by the end of century) especially for northern counties. This impact was found to be considerably higher (ranging from 3.5–4.9 times higher) than the impact of climate change on the probabilities of corrosion initiation, crack initiation, and severe cracking. Furthermore, the impact of climate change at the end of century was found to have an increasing trend from south to north.

An important research gap that was not addressed in the current article (nor in previous studies) concerns the effect of climate change on surface chloride concentrations. Climate change increases ocean salinity in some locations and decreases it in other locations [1]. Hence, the surface chloride concentration \(({C}_{s})\) of marine structures can also be affected by climate change. Noting that the corrosion process is highly sensitive to changes in this parameter (as shown in Sect. 4.3), addressing this research gap is of considerable importance. However, this parameter is also dependent on several other local factors such as wind patterns and precipitation (which are both also affected by climate change), distance of structure from ocean, and surface orientation, see, e.g., [67]. The unavailability of the climate data needed hinders the quantification of this effect.

Several other research directions are considered worthwhile. Noting that other studies [6, 25] found that carbonation-induced corrosion of concrete infrastructure is significantly affected by climate change, quantifying this effect for the Swedish climate conditions and its interaction with chloride-induced corrosion is worthy of investigation. Furthermore, a simply supported beam with atmospheric exposure was studied in the current article. The impact of climate change on the corrosion of other reinforced concrete structural elements (e.g., bridge piers) under different exposure conditions (e.g., splash, tidal, or submerged) should be explored. Additionally, the cost-effectiveness of the different adaptation options for the increased impact of infrastructure corrosion [68] (e.g., Using cathodic protection, increasing the concrete cover thickness, or improving the quality of concrete) should be assessed under the Swedish climate conditions. Moreover, future research should address the combined effect of concrete corrosion and other potential climate change impacts on concrete structures (e.g., thermal-stress–strain behaviour [69]). Lastly, assessing the impact of climate change on the reliability of structural elements made of other materials (e.g., timber, steel, and masonry) under Swedish climate conditions is worth exploring.

Availability of data and materials

All data that support the findings of this study are available from the corresponding author upon reasonable request (temperature and relative humidity projections).
