Lifecycle cost analysis of bridges subjected to fatigue damage
Journal of Infrastructure Preservation and Resilience volume 2, Article number: 25 (2021)
Abstract
Lifecycle cost analysis (LCCA) is a decisionmaking tool particularly useful for the design of bridges as it predicts lifetime expenses and supports the inspections management and the maintenance activities. LCCA allows to consider uncertainties on loads, resistances, degradation and on the numerical modelling and structural response analysis. It also permits to consider different limit states and different types of damage in a unified framework. Among the types of damages that can occur to steel and steelconcrete composite bridges, fatigue is one of the most dangerous ones, as it may lead to sudden and fragile rupture, even at operational traffic levels. In this context, the present paper proposes a framework for LCCA based on the use of the Pacific Earthquake Engineering Research (PEER) equation which is for the first time utilized for fragility and cost analysis of bridges subjected to fatigue, highlighting the possibility of treating the problem of fatigue damage estimation with an approach similar to the one currently adopted for damage induced by other hazards, like earthquake and wind. To this aim, a damage index computed through the PalmgrenMiner’s rule is adopted as engineering demand parameter. The framework is applied to a composite steelreinforced concrete multispan roadway bridge by evaluating the fatigue limit state from different traffic load models, i.e. a Technical Codebased model and a model based on results of Weigh in Motion monitoring system. The evolution over time of the probability of failure and the lifecycle costs due to fatigue damage induced by heavy traffic loads are investigated for different probability distributions of the engineering demand parameter and for different fragility models. The comparison between the fatigue failure probabilities and the lifecycle costs obtained with the two traffic models, encourages the adoption of traffic monitoring systems for a correct damage estimation.
Introduction
The LCCA is a wellestablished probabilisticbased procedure in earthquake engineering which has been recently considered in the structural design. It allows to compute, in a probabilistic setting, the total lifetime cost of a specific design solution, accounting for all the possible cost sources like initial costs, repair and maintenance costs, downtime costs and disposal costs. The main objective is to assist decision makers in correct economic resources allocation according to the best costbenefit performance criteria considering the phases of design, construction and management of the building. The basic theory of LCCA with a general formulation for the evaluation of the expected lifecycle is presented in [1]. Although LCCA is a longused methodology in earthquake engineering [1, 2] and in wind engineering applications [3,4,5], including design of the main structure and/or auxiliary damping systems [6,7,8], it is currently spreading for extensive use in bridges, to compliant with real service conditions and account for inspections and maintenance activities [9, 10]. Indeed, a lifecycle cost model for a bridge allows the consideration of the effects of multiple types of hazards, i.e., earthquake, wind, traffic, degradation, floodinduced scour, carbonatation, and of different types of limit states, i.e., the ultimate strength for bending and shear, the serviceability limit states of deformation and stresses, the fatigue limit state and aeroelastic limit states in the case of longspan bridges [11, 12].
In this context, a considerable body of research has been recently devoted to the probabilistic assessment of the lifecycle costs of bridges under various hazards which contribute to damage occurrence. A practical lifecycle costbased formulation for the optimum design of steel bridges is proposed in [13]. The optimal target reliability is explored by comparing the reliability index and the estimated lifecycle cost in [14, 15]. In [16] a fragilitybased framework for investigating the serviceability of a bridge in its lifecycle under earthquakes and traffic loads is presented. A resourceconstrained project scheduling problem (RCPSP) framework to deal with the budget allocation and the adjustment of the bridge’s lifecycle maintenance is proposed in [17]. The challenges in the lifecycle performance of infrastructure systems in terms of their assessment, monitoring, management and maintenance is investigated in [18] while a model to optimize the maintenance strategies based on structural health monitoring information on highway bridges, including the maintenance cost and monitor cost is proposed in [19]. Comprehensive frameworks for bridge lifecycle performance and cost assessment are provided in [20, 21].
Among the types of damage that can produce significant losses in bridges, fatigue is one of the most important one, as it may produce fragile rupture to metallic members. For this reason, numerous studies were conducted on the fatigue reliability of steel bridges. The influence of environmental effects (temperature) and traffic loads on fatigue behavior of a longspan suspension bridge is investigated in [22]. Different probability density functions of equivalent stress ranges on fatigue reliability are explored in [23] for existing bridges. In [24] the fatiguerelated damage of bridges is evaluated accounting for multiple hazards and in [25] a calibration factor is proposed in order to correlate the expected number of cycles to failure to an equivalent value which includes both contributing and noncontributing stress cycles. Additionally, the use of onsite monitoring data is growing attention in order to obtain a more accurate evaluations of fatigue reliability [26,27,28].
In this context, the objective of the present paper deals with the estimation of the monetary lifecycle loss assessment of roadway bridges, carried out in the context of the (Performance Based Design) PBD approach, a probabilisticbased approach capable of taking into account different sources of uncertainties such as those related to multiple hazard event occurrence, the structural response, the performance of the monitoring system and so on. Hence, a general and comprehensive methodology accounting for multiplehazards and several limit states, exploiting the PEER convolution integral [29] to compute the probabilities of failure related to lifecycle costs is proposed. In particular, the proposed framework is specified to the case of bridges subjected to fatigue damage. The estimation of fatiguerelated probability of failure using the PEER framework is a novelty in the scientific literature and allows to insert the evaluation of fatiguedamage induced costs in a comprehensive and unified framework for lifecycle cost assessment of bridges. Starting from the knowledge of the traffic load model, that can be obtained by Weigh in Motion (WIM) system or by Codes’ prescriptions, the gross vehicles weight (GVW) is assumed as intensity measure (IM) and a fatigue damage index (D) calculated through the PalmgrenMiner’s rule is adopted as engineering demand parameter (EDP). The damage accumulation is evaluated by considering the time dependency of the fatigue damage index. The framework is applied to a composite steelreinforced concrete multispan roadway bridge by evaluating the fatigue limit state from the traffic loads defined by the Eurocode and obtained through a WIM monitoring system, for different probability distributions of the EDP and for different fragility models.
Fatigue LCCA of bridges
General LCCA methodology
The general formulation of the expected value of the total cost in the lifetime of a bridge, eventually equipped with a Structural Health Monitoring system (SHM), considering several hazard types and limit states at the same time, can be expressed through the following expression:
where E [.] denotes the expected value operator; L_{t} is the lifetime of the bridge expressed in years; J is the total number of the considered limit states; S is the total number of analysed sections; H is the total number of the considered hazards; C_{0} is the initial cost of the bridge that includes the costs for design, testing, construction, terrain purchase, safety burdens. If a SHM system is adopted, like for example a WIM system for traffic load measurement, C_{SHM,0} is the initial cost of the WIM system, C_{SHM,M} is the maintenance costs of the WIM system comprising the annual costs of the recalibration C_{SHM,m} and sensors replacement costs C_{SHM,r} (C_{SHM,M} = C_{SHM,m}+ C_{SHM,r}). E[C_{j,s,h}] is the expected value of the cost of the jth limit state being reached in the sth section of the bridge and due to the hth hazard, including cost of damage and repair; C_{m} is the maintenance cost per year; C_{i} is the inspection cost per year; r is the discount rate.
By normalizing expected costs in Eq. (1) with respect to the initial cost C_{0}, the following expression can be obtained:
where c_{SHM,0}=C_{SHM,0}/ C_{0}, c_{,m}=C_{m}/ C_{0}, c_{m}=C_{m}/ C_{0}, c_{i}=C_{i}/ C_{0} and k_{j,s,h} can be defined as follows:
where c_{j} is the failure cost related to the jth limit state, c_{r} is the repair cost per unit length, \(\overline{\mathrm{P}}\) is the probability threshold beyond which the repair cost is required and P_{j,s,h} is the annual failure probability at year t and at section s, related to limit state j and to hazard h. Making the hypothesis that the bridge is restored to its original condition after each failure occurrence and that multiple hazards never occur simultaneously, the annual failure probability can be evaluated by using the PEER convolution integral, as follows:
where IM is the intensity measure related to the hth hazard; EDP is the engineering demand parameter at section s; DS is the damage state associated to the achievement of the jth limit state; P(DSEDP) is the fragility curve (the complementary cumulative distribution function of DS conditioned to the occurrence of EDP); f(EDPIM) is the probability density function (PDF) of EDP conditional on IM; f(IM) is the PDF of IM.
It is worth mentioning that the methodology is general and the effect of different mechanisms in which damage accumulates over time or multiple hazards interaction may be included by introducing statedependent and multihazard fragility curves [30, 31].
Failure probability evaluation for bridges subjected to fatigue limit state based on the PEER equation
The PEER approach has been adopted so far for bridges’ damage probability evaluation related to ultimate limit states of bending and shear (due to earthquake, wind and traffic loads) and for deformability limit states (due to traffic loads). The main contribution of the present paper is to extend the PEER approach to the case of fatigue damage probability estimation by means of a general formulation. It is hypothesized for simplicity that fatigue occurs on members that do not deteriorate over time due to corrosion. Nonetheless, it is possible the inclusion in the unified framework of the coupled corrosionfatigue damage phenomena [32, 33].
The proposed methodology, schematically represented in Fig. 1, starts from the knowledge of the traffic load model, that can be obtained following two different procedures:

1.
using monitoring data obtained from a WeighInMotion (WIM) system capable of detecting the gross vehicle weight, the axles weights and spacings and the number of the vehicles that annually pass through the bridge;

2.
exploiting information provided by the National Standards that give the annual traffic composition.
Once known the traffic model, the loadinginduced stress time histories are computed by influence lines to obtain the variation of bending moment at a specific cross section of the bridge s and the corresponding normal stresses Δσ at the specific point of the cross section where the analyzed fatigue detail is located. Then, using the time histories of stresses at the locations of the fatiguesensitive structural details, the number of cycles n_{i} associated with the stress range Δσ_{i} are determined through the rain flow method [34].
The PEER equation (Eq. 4) is particularized for computing fatigue damage probability. To this aim, the gross vehicle weight (GVW) is adopted as intensity measure (IM). The traffic hazard curve, whose first derivative is the f(IM) in the PEER equation, is specific for the analysed bridge and represents the annual relative frequency of vehicles passages as a function of the GVW. In the proposed methodology the fatigue damage is modeled according to the PalmgrenMiner's rule, which is based on the hypothesis that the fatigue damage is equal to the accumulated cycle ratio [35], expressed by:
where n_{i} is the number of cycles associated with the stress range Δσ_{i} and N_{i} is the corresponding cycles to failure obtained from the SN Wöhler curve [35], D is the damage index assumed as random variable (as EDP) in the PEER equation. The randomness of D allows accounting for uncertainties on stress cycles computation (and consequently on numbers of stress cycles n_{i}) and numbers of cycles to failure N_{i} evaluation.”
Exploiting Eq. (4) it is possible to determine the annual probability of exceeding the fatigue limit state due to traffic load. The following steps are carried out for the computation of the PEER equation (Fig. 1):

partition of the GVW range, available from WIM data or from National Standards, in a set of intervals. Known the annual number of passages corresponding to the vehicles comprised in each subinterval, it is possible to determine a relative frequency diagram of GVW which is used to obtain the probability distribution of GVW, i.e., f(IM);

computation, for each kth subinterval of GVW, of a damage index D_{k} as the sum of the damage indices of the vehicles belonging to the kth subinterval, exploiting Eq. (5). D_{k} is assumed as the mean value of the EDP conditional on IM, f(EDPIM). A probability distribution is associated to EDP, f(EDPIM), e.g. normal or lognormal, with mean value equal to D_{k} and a coefficient of variation (COV) taken from literature. This allows accounting for uncertainties in traffic load model characterization and response parameters estimation.

modification of the probability distribution of EDP over years to account for damage accumulation over time. For each kth subinterval of GVW, the mean value of D at time t_{i}, is obtained as the sum of D_{k}(t_{i}1) and D_{k}(t_{i}). If the traffic model is constant with time D_{k}(Lt)=Lt·D_{k}(t_{1});

definition of the fragility curve P(DSEDP); the fatigue damage occurs when the damage value D (calculated through Eq. (5)) equals its critical value D_{crit}:
To account for the random nature of fatigue damage (i.e. the uncertainty on fatigue damage occurrence in correspondence of a specific value of D), the critical value of the damage index D_{crit} is considered as a random variable with mean value equal to unity.
The case study
The proposed framework has been applied to a continuous steelconcrete composite highway bridge located in central Italy. The structure is 570 meters long and includes 10 spans of varying lengths, represented in Fig. 2a. The cross section consists of two doubleT welded steel girders, as represented in Fig. 2b. The damage probability is calculated through the PEER convolution integral on 57 sections, uniformly spaced every 10 meters over the bridge length (represented with triangles in Fig. 2a). The detail considered for the fatigue damage estimation is a continuous longitudinal weld between the web and the bottom flange of the girder.
Hazard model
For the evaluation of the fatigue limit state it is necessary to probabilistically characterize the traffic model through the hazard curve. For the sake of demonstrating the influence of the traffic model on the LCCA results, the analyses have been carried out considering two different types of traffic hazard curves:

the first hazard curve has been constructed from traffic data obtained from a WIM monitoring system located along the Interstate 80, Iowa, USA, known to the authors from a separate research study [36, 37]. The traffic hazard curve has been defined experimentally by choosing the GVW as the parameter that describes the load according to its annual frequency of exceeding.

the second hazard curve has been obtained considering the Fatigue Load Model 4 used by the European Technical Standard (Eurocode 1 – Part 2) [38] for the estimation of fatigue damage on bridges. The Eurocode provides, for each one of the five vehicles specified in Fatigue Load Model 4 and for a specific type of road, the weight of the single axles and the percentage of the number of passages with respect to the total number of annual passages. The IM is the GVW calculated as the sum of the weights of the individual vehicle axles provided by the Eurocode. The total number of vehicles is assumed equal to the one provided by the WIM system, to consider the effect of the sole traffic distribution, being equal the traffic intensity.
The traffic hazard curves (Cumulative distribution function, CDF, and probability density function, PDF, of GVW) obtained from WIM system data and from Eurocode 1 are compared in Fig. 3, for the same type of road (highway road). It is visible from the Figures the large difference that can derive from the assumption of different load models.
In the following analyses it is assumed that the annual composition of traffic does not change over time, so the f(IM) is the same for all years. Conversely, the value of the EDP changes over time due to the accumulation of damage.
Fatigue damage assessment
The calculation of the damage index D is done through Eq. (5), where n_{i} is determined from WIM data in case of use of the monitoring system while n_{i} is defined as a percentage of the total number of vehicle passage in the case of adoption of Eurocode Fatigue Load Model 4. In both cases, in addition to providing information regarding the total weight of the vehicles, the weight distribution of the axles and their spacing are provided. This information is necessary for the determination of the influence line which allows to evaluate the time histories of the internal forces and the corresponding stresses at the analysed sections. The stress ranges are determined by the rainflow method [34] and the corresponding cycles to failure obtained from the SN curve. Without loss of generality the SN logarithmic curves are taken from Eurocode 3 [39] and are considered as deterministic, since the uncertainty in their evaluation is implicitly considered by assuming the damage index D as a random variable.

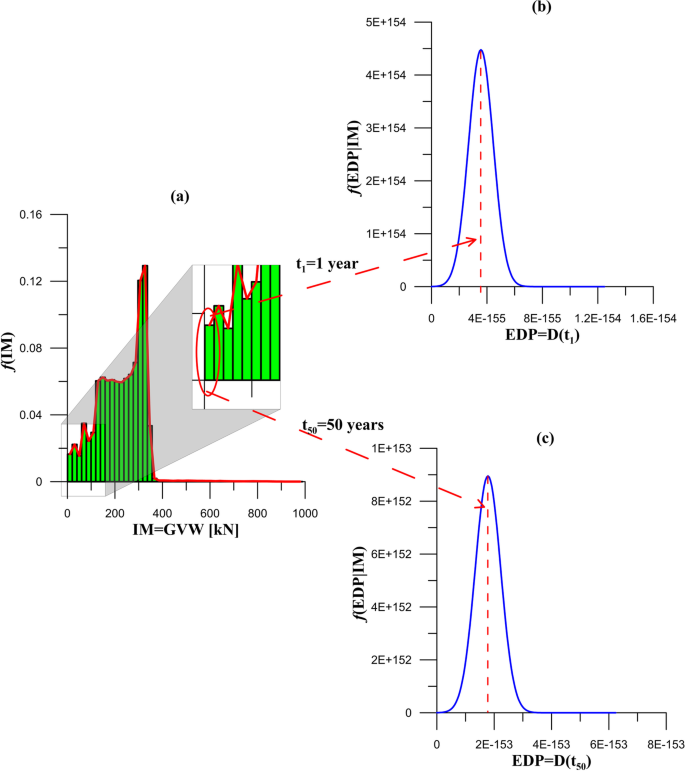

Figure 4 illustrates the application of the PEERbased procedure for the computation of fatigue damage probability. Figure 4a shows the probability distribution of IM, f(IM), obtained from WIM data. The Figure highlights that, for each subinterval in which the f(IM) is subdivided, the probability distribution of the damage index D at the ith year is computed. The f(EDPIM) at subsequent years is computed by assuming as mean value of the distribution the sum of the damage indexes accumulated in all the previous years. The damage index D calculated for each range of GVW is assumed to have a normal distribution with a COV=0.25 [40].
As shown in Fig. 5, the uncertainty assumed on the PalmgrenMiner damage accumulation rule (D_{crit}) is assumed to be lognormal distributed with mean 1.0 and COV=0.3 [40].
Lifecycle cost analysis
LCCA is carried out by applying (Eqs. 2 and 3). The initial cost of the bridge C_{0} is taken from design documentation [15] and the initial cost of the WIM system C_{SHM,0}, including sensors and ancillary works, is assumed equal to € 60.000, based on information provided by producers [41]. The annual maintenance cost of the bridge C_{m} is considered as the 1% of the initial cost of the bridge [42], while the annual cost of maintenance of the WIM system C_{SHM,m} is assumed equal to the 20% of the initial cost. It is hypothesized that after 10 years the sensors are replaced and the cost of the new sensors C_{SHM,r} is the 40% of the initial costs [43].
The unit failure cost c_{j} (Eq. 3), can be computed as a percentage ν of the initial cost C_{0} [15], as follows:
The coefficient ν is assumed equal to 1.1 to account for demolition and disposal costs [15]. The repair cost c_{r} (Eq. 3) is taken as the 10% of c_{j} (c_{r} = 0.1 c_{j}). The cost items presented above are summarized in Table 1.
The annual inspection cost Ci is defined through the price list of Italian National Autonomous Roads Corporation (ANAS) [45] and it is evaluated by including the cost elements reported in Table 2.
The discount rate is assumed equal to r = 0.05 and the threshold of the probability beyond which a repair intervention is required is assumed without loss of generality equal to 10^{2}, corresponding to an average value of reliability index suggested by Eurocode 0 for the structural members subjected to the fatigue limit state (1.5 < β < 3.8) [46, 47].
Numerical results
Figure 6 shows the probability of exceeding the fatigue limit state over time of one of the most critical bridge sections (no. 43, at the midspan of the 8^{th} span), calculated by Eq. (4). Figure 6 (a) represents the probability calculated from the hazard traffic curve obtained from the WIM system data and Fig. 6 (b) shows the probability referred to the hazard traffic curve obtained from the Eurocode 1. The increase in probability over time is due to the accumulation of damage caused by the passage of vehicles across the bridge.

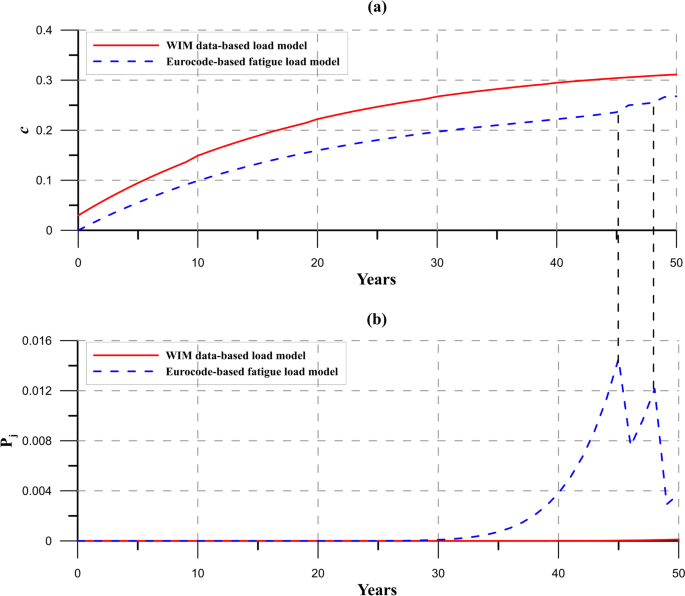

Figure 7(a) illustrates the expected life cycle cost over time of the bridge normalized with respect to the initial construction costs (Eqs. 2 and 3) and Fig. 7(b) shows the corresponding cumulated probability of failure as a function of time by comparing the case in which the hazard traffic curve is obtained from the monitoring system and when it is obtained by the Eurocode 1. In the case of Eurocode, it can be observed a pronounced cost increase with time associated to the attainment of the probability threshold while, in the case of use of WIM data the overall lifecycle costs are greater due to the significant initial, maintenance and replacement cost of the WIM system. Nonetheless this results strictly depend on the hypothesis made about costs of the WIM system and about the probability distribution of EDP and fragility model. Conversely, the use of WIM system data has the obvious advantage of guaranteeing a more realistic estimate of fatigue damage probability.
Since the choice of the probability distributions of EDP and D_{crit} significantly influence the expected costs, parametric analyses have been carried out on the variations of the COVs of EDP and D_{crit}. Figure 8(a) and (b) show the normalized expected cost, evaluated for different values of COV of EDP (0.25, 0.5 and 0.8) for D_{crit} lognormally distributed with mean 1.0 and COV = 0.3, for the case of Eurocodebased fatigue load model and WIMbased monitoring data load model, respectively. Figure 8(c) and (d) represent the normalized expected cost, evaluated with mean 1.0 and for different values of COV of D_{crit} (0.1, 0.2 and 0.3) and for a fixed value of COV of EDP equal to 0.8, for the case of Eurocodebased fatigue load model and WIMbased monitoring data load model, respectively. It is visible from Fig. 8(ab) that the expected cost increases over time and is greater when the uncertainty on the EDP is equal to 0.8. On the other hand, Fig. 8(cd) show that the cost is higher when the uncertainty on COV of D_{crit} equals 0.3.
Figure 9 shows the results in terms of expected normalized costs (ab) and the corresponding trends of the fatigue failure probabilities (cd) considering COV of EDP equal to 0.8 (mean value equal to D) and D_{crit} equal to 0.3 (mean value equal to 1.0). Figure 9(ac) are obtained with the Eurocodebased fatigue load model and Fig. 9(bd) are obtained with the WIM databased load model. In both cases it is possible to observe that the costs increase when the probability threshold is reached, as there is the need for a repair action. From results, it can also be noted that the Eurocodebased hazard traffic curve overestimates the cost with respect to the case in which the hazard curve is obtained from WIM data.
Conclusions
In this paper a general methodology for the computation of the expected total lifecycle cost of bridges is proposed, based on the PEER equation for failure probability estimation. The main novelties of the paper with respect to the existing literature can be summarized as follows:

the approach based on the PEER equation is for the first time applied to cost and fragility analysis of bridges subjected to fatigue, highlighting the possibility of treating the problem of fatigue damage estimation with an approach similar to the one currently adopted for damage induced by other hazards, like earthquake and wind;

the proposed method can use data from WIM systems allowing a reliable lifecycle costbased assessment.
Starting from the knowledge of the traffic load model, the gross vehicles weight is assumed as IM and the fatigue damage index calculated through the PalmgrenMiner’s rule is adopted as EDP. The damage accumulation is evaluated by considering the time dependency of the fatigue damage index.
The framework has been applied to a continuous steelconcrete composite highway bridge by evaluating the fatigue limit state from the traffic loads defined by the Eurocode 1 and obtained through a WIM monitoring system, for different probability distributions of the EDP and for different fragility models. The comparison between the fatigue failure probabilities and the lifecycle costs obtained with the two traffic models highlighted that the Eurocodebased hazard traffic curve overestimates the cost with respect to the case in which the hazard curve is obtained from WIM data, encouraging the adoption of traffic monitoring systems for a correct damage estimation.
Availability of data and materials
The data that support the findings of this study are available from the corresponding author upon reasonable request.
Abbreviations
 CDF:

Cumulative distribution function
 COV:

Coefficient of variation
 D:

Damage index
 EDP:

Engineering demand parameter
 GVW:

Gross vehicles weight
 IM:

Intensity measure
 LCCA:

Lifecycle cost analysis
 PBD:

Performance Based Design
 PDF:

Probability density function
 PEER:

Pacific Earthquake Engineering Research
 RCPSP:

Resourceconstrained project scheduling problem
 SHM:

Structural Health Monitoring
 WIM:

WeighinMotion
References
Wen YK, Kang YJ (2001) Minimum building lifecycle cost design criteria. I: Methodology. J. Struct. Eng 127(3):330–337
Wang CS, Zhai MS, Li HT, Ni YQ, Guo T (2015) Lifecycle cost based maintenance and rehabilitation strategies for cable supported bridges. Adv. Steel Constr. 11(3):395–410
Venanzi I, Lavan O, Ierimonti L, Fabrizi S (2018) Multihazard loss analysis of tall buildings under wind and seismic loads. Struct and Infrastruct Eng 14(10):1295–1311
Micheli L, Alipour A, Laflamme S (2021) Lifecyclecost optimization of windexcited tall buildings using surrogate models. Struct Des of Tall Spec Build 30(6):e1840
Ierimonti L, Venanzi I, Caracoglia L, M ASCE, Materazzi AL (2019) CostBased Design of Nonstructural Element for Tall Buildings under Extreme Wind Environments. J of Aerosp Eng 32(3):04019020
Micheli L, Alipour A, Laflamme S, Sarkar P (2019) Performancebased design with lifecycle cost assessment for damping systems integrated in wind excited tall buildings. Eng Struct 195:438–451
Micheli L, Cao L, Laflamme S, Alipour A (2020) LifeCycle Cost Evaluation Strategy for HighPerformance Control Systems under Uncertainties. J Eng Mech 146(2):04019134
Kleingesinds S, Lavan O, Venanzi I (2020) LifeCycle costbased optimization of MTMDs for tall buildings under multiple hazards. Struct Infrastruct Eng 17(7):921–940
Hasan MA, Yan K, Lim S, Akiyama M, Frangopol DM (2020) LCCbased identification of geographical locations suitable for using stainless steel rebars in reinforced concrete girder bridges. Struct. Infrastruct. Eng. 16(9):1201–1227
Wang Z, Dong Y, Jin W (2021) LifeCycle Cost Analysis of Deteriorating Civil Infrastructures Incorporating Social Sustainability. J. Infrastruct. Syst. 27(3):04021013
Estes AC, Frangopol DM (2001) Bridge lifetime system reliability under multiple limit states. J Bridge Eng 6(6):523528
Ubertini F (2010) Prevention of suspension bridge flutter using multiple tuned mass dampers. Wind & Struct 13(3):235–256
Lee KM, Cho HN, Choi YM (2004) Lifecycle costeffective optimum design of steel bridges. J Constr Steel Res 60(11):1585–1613
Kim SH, Choi MS, Cho KI, Park SJ (2013) Determining the Optimal Structural Target reliability of a Structure with a Minimal LifeCycle Cost Perspective. Adv Struct Eng 16(12):20752091
Venanzi I, Castellani R, Ierimonti L, Ubertini F (2019) An automated procedure for assessing local reliability index and lifecycle cost of alternative girder bridge solutions. Adv Civ Eng 5152031
Decó A, Frangopol DM (2013) Lifecycle risk assessment of spatially distributed aging bridges under seismic and traffic hazards. Earthquake Spectra. 29(1):127–153
Liu SS, Huang HY, Kumala NRD (2020) TwoStage Optimization Model for Life Cycle Maintenance Scheduling of Bridge Infrastructure. Appl. Sci. 10(24):8887
Frangopol DM (2010) Lifecycle performance, management, and optimization of structural systems under uncertainty: accomplishments and challenges. Struct. Infrastruct. Eng. 7(6):389–413
Orcesi AD, Frangopol DM (2011) Optimization of bridge maintenance strategies based on structural health monitoring information. Struct. Saf. 33:26–41
Frangopol DM, Dong Y, Sabatino S (2017) Bridge lifecycle performance and cost: analysis, prediction, optimisation and decisionmaking. Struct. Infrastruct. Eng. 13(10):1239–1257
Kim S, Frangopol DM (2011) Cost effective lifetime structural health monitoring based on availability. J. Struct. Eng. 137:22–33
Tong G, Aiqun L, Jianhui L (2008) Fatigue Life Prediction of Welded Joints in Orthotropic Steel Decks Considering Temperature Effect and Increasing Traffic Flow. Struct. Health Monit. 7(3):189–202
Kwon K, Frangopol DM (2010) Bridge fatigue reliability assessment using probability density functions of equivalent stress range based on field monitoring data. Int. J. Fatigue 32(8):1221–1232
Chen ZW, Xu YL, Wang XM (2012) SHMSBased Fatigue Reliability Analysis of Multiloading Suspension Bridges. J. Struct. Eng. 138(3):299–307
Park JY, Park YC, Kim HK (2018) A methodology for fatigue reliability assessment considering stress range distribution truncation. Int. J. Steel Struct. 18(4):1242–1251
Guo T, Chen YW (2013) Fatigue reliability analysis of steel bridge details based on fieldmonitored data and linear elastic fracture mechanics. Struct. Infrastruct. Eng. 9(5):496–505
FarrerasAlcover I, Chryssanthopoulos MK, Andersen JE (2017) Databased models for fatigue reliability of orthotropic steel bridge decks based on temperature, traffic and strain monitoring. Int. J. Fatigue 95:104–119
Bayane I, Long L, Thöns S, Brühwiler E (2019) Quantification of the conditional value of SHM data for the fatigue safety evaluation of a road viaduct. In: 13th International Conference on Applications of Statistics and Probability in Civil Engineering, ICASP13. South Korea, Seoul
Kunnath SK (2007) Application of the PEER PBEE methodology to the I880 viaduct. I880 Testbed Committee University of California, Davis, California
Anelli A, Mori F, Vona M (2020) Fragility curves of the urban road network based on the debris distributions of interfering buildings. Appl Sci (Switzerland) 10(4):1289
Aljawhari K, Gentile R, Freddi F, Galasso C (2020) Effects of groundmotion sequences on fragility and vulnerability of casestudy reinforced concrete frames. Bull Earthq Eng. https://doi.org/10.1007/s10518020010068
Deng L, Yan W, Nie L (2019) A simple corrosion fatigue design method for bridges considering the coupled corrosionoverloading effect. Eng Struct 178:309–317
Peng D, Jones R, Singh RRK, Berto F, McMillan AJ (2018) On the interaction between corrosion and fatigue which determines the remaining life of bridges. Fatigue Fract Eng Mater Struct 41(2):314–322
Downing SD, Socie DF (1982) Simple rainflow counting algorithms. J Fatigue 4(1):31–40
Miner M (1945) Cumulative damage in fatigue. J Appl Mech 12(3):159–164
Torti, M, Venanzi I, Laflamme S. Ubertini F (2021) Lifecycle management cost analysis of transportation bridges equipped with seismic structural health monitoring systems Struct Health Monit. https://doi.org/10.1177/1475921721996624
Sacconi S, Ierimonti L, Venanzi I, Ubertini F (2021) Towards the development of a comprehensive framework for life cycle cost analysis of bridges subjected to multiple hazards. In: Proceedings of the 8th ECCOMAS Thematic Conference on Computational Methods in Structural Dynamics and Earthquake Engineering. Greece, Athens
Eurocode 1 (2003) Actions on structuresPart 2: Traffic load on bridges, Eurocode 1: EN 19912. European Committee for Standardization, Brussels, Belgium
Eurocode 3 (2005) Design of steel structuresPart 19: Fatigue, Eurocode 3: EN 199319. European Committee for Standardization, Brussels, Belgium
Det Norske Veritas (2010) Fatigue Design of Offshore Steel Structures. No. DNVRPC203
KISTLER. https://www.kistler.com/it/applications/sensortechnology/pesaturadinamicawim
Wicke M (1988) Inspection, assessment and maintenance. Proceedings of the 13th International Association of Bridge and Structural Engineering Congress on Challenges to Structural Engineering. Finland, Helsinki
Hallenbeck M, Weinblatt H (2004) Equipment for Collecting Traffic Load Data. Transportation Research Board of the National Academies
Neves AC, Leander J, Gonzalez I, Karoumi R (2019) An approach to decision making analysis for implementation of structural health monitoring in bridges. Struct Control and Health Monit 26(6):e2352
ANAS S.p.A (2020) Listino prezzi 2020. Prove, Indagini e Monitoraggio https://www.stradeanas.it/sites/default/files/PMIGMA_LISTINO%20PREZZI%202021.pdf
Eurocode 0 (2005) Basis of structural design, Eurocode 0: EN 1990. European Committee for Standardization, Brussels, Belgium
Rackwitz R (2000) Optimizationthe basis of codemaking and reliability verification. Struct Saf 22(1):27–60
