Deformation superposition effect of asphalt mixture based on experiments and micromechanical modeling

Abstract

Under multi-wheel heavy load, the asphalt mixture is prone to exhibit the deformation superposition effect, which exacerbates the damage of pavement structure. Multi-point penetration tests and numerical simulations by discrete element method (DEM) are performed to investigate the deformation superposition effect and micromechanical characteristics of asphalt mixture. The effect of wheel spacing, wheel group, and the evolution of micromechanical deformation superposition behavior are analyzed. Results indicate that the deformation superposition resistance of the asphalt mixture under the multi-wheel load decreases dramatically with the decrease in wheel spacing and the increase in the number of wheels, specifically the wheel spacing is 54 mm and the number of wheels is 4. The DEM simulations reflect the micromechanical property of asphalt mixture in the multi-point penetration test. The reduction of tensile chains is the internal reason for asphalt mixture deformation superposition, indicating the decrease of the adhesive strength of the material. A remarkably positive correlation is found between the reduction of the tensile chain and the deformation effect coefficient. In the process of superposition, the aggregate skeleton force chains are gradually destroyed and decrease to zero until cracking. The numerical simulation outcome is consistent with the laboratory penetration test outcome.

Highlights

  1. (1)

    Evaluation of deformation superposition behavior of asphalt mixture by the multi-point penetration test.

  2. (2)

    Determinant of the deformation superposition resistance of the asphalt mixture under the multi-wheel load is wheel spacing and the number of wheels.

  3. (3)

    The reduction of tensile chains is the internal reason for asphalt mixture deformation superposition.

  4. (4)

    The numerical simulation method can reflect the laboratory penetration test outcome.

Introduction

The proportion of multi-wheel heavy transportation increases significantly on asphalt pavements of high-grade highways and airports. The multi-wheel load produces stress interference inside the asphalt mixture. The deformation that occurs at the same point is equivalent to the deformation superposition caused by a single load. Deformation superposition accelerates pavement structure destruction and performance degradation [1,2,3]. Excessive superposition deformation directly affects driving comfort and endangers driving safety. Therefore, the first step is to understand the evolution of deformation superposition under the multi-wheel load and internal micromechanical characteristics that uncover the deformation superposition behavior to effectively control the deformation and ensure the long-term stability of pavement structure.

The importance of deformation superposition related to heavy load as the major contributor to damage of asphalt pavement has long been recognized [4, 5]. On the one hand, previous studies mainly focused on long-term monitoring and field investigation of the macroscopic characteristics of deformation superposition. Gomezramirez [6], Hayhoe et al. [7], and Gopalakrishnan [8] utilized the National Airport Pavement Test Facility to monitor the damage of asphalt pavement under aircraft load. The mechanical response within pavement materials under the multiple wheels is obtained. Al-Qadi et al. [9] embedded 149 sensors on the airport pavement. The sensors monitor the response of pavement structure and ambient data under vehicles and aircraft. The data are used to modify pavement design models and performance estimates. Fabre et al. [10] established a test section at an airport. They set up a rutting monitoring sensor to explore the pavement response under two-wheel load. Salama et al. [11], Zhao et al. [12], and Minkwan et al. [13] analyzed the superposition effect of asphalt pavement under the multi-axle loads. They pointed out that the asphalt pavement responses appear to have obvious superposition characteristics, indicating that the superposition under multi-wheel load must be considered compared with single wheel loads. These studies confirm the existence and destructive effect of deformation superposition behavior of asphalt mixture. However, most field monitoring is time-consuming and involves considerable financial costs. Understanding the micromechanical mechanism of the deformation superposition behavior of asphalt mixture based on field monitoring is difficult.

On the other hand, understanding the deformation superposition characteristics conduces to predict the structural response of pavement and provides a method to design or repair asphalt pavement. Thompson et al. [14] proposed two superposition analysis methods. The whole idea relies on the assumption of the linear superposition principle. They [15] also applied the superposition principle to analyze the superposition effect. They believed that the pavement response under multi-wheel load can be obtained by superimposing the response under a single wheel load. Zhao et al. [16] used the peak midpoint method to calculate the typical pavement structure damage under dual-wheel load. The damage obtained by diverse methods differs by more than three times. Martin [17], Marques et al. [18], Chatti et al. [19], and Homsi et al. [20] reached similar conclusions. This condition indicates that the prediction of superposition response under the multi-wheel load is based on the superposition principle. However, this assumption is not found in the understanding of the internal mechanism of materials, and expounding scientifically on the pavement damage under complex loads is difficult.

The discrete element method (DEM) allows the deformation of asphalt mixture to be characterized from a microscale perspective. You et al. [21] established a 2D model of the tensile tests for asphalt mixture. They analyzed the distribution of forces and the expansion of cracks. Zelelew [22] simulated the compression creep test of asphalt mixture by utilizing a 2D discrete element microscopic model from X-ray computed tomography images. He obtained the flow number and creep compliance and analyzed the permanent deformation characteristics of asphalt mixture. Chen et al. [23, 24] studied the deformation of asphalt mixture in the compaction process by utilizing the DEM. They discussed the void distribution and obtained similar results with the experiment. The results indicate that simulating the meso mechanical behavior by reconstructing a discrete element model of asphalt mixture is feasible. The DEM can quantitatively analyze the force chain distribution of asphalt mixture during loading. The force chain is used to describe the interaction of particles within the system. This concept was proposed by Bouchaud et al. [25], Wittmer et al. [26] on the basis of the study of arching effect, stress distribution, and stress extension in granular matter. Tordesillas et al. [27, 28] utilized a discrete element model to analyze the spatial distribution of force chain buckling under quasi-static biaxial load. Wang et al. [29] considered the influence of the filling rate and friction coefficient of dense particulate on the distribution of force chain. They studied the angle distribution of the force chain. You et al. [30, 31] established a discrete element model of asphalt mixture composed of particles to simulate the standard penetration test. They presented the distribution of force chains among aggregate, among asphalt mastics, and between aggregate and asphalt mastics at different loading times.

In conclusion, the deformation superposition-induced damage contributes considerably to the deterioration of asphalt mixtures. Several studies rarely focused on the micromechanical characteristics of the deformation superposition behavior of asphalt mixture based on field monitoring. The DEM promotes the understanding of the internal micromechanical of asphalt mixture deformation superposition. Further research is necessary. In this study, the multi-point penetration test and DEM were used. The macro characteristics of the asphalt mixture deformation effect were analyzed, and the mesoscopic mechanism of deformation superposition was explored. The matching relationship between macroscopic deformation and micromechanical was established, providing the necessary guidance for the prevention and treatment of asphalt pavement deformation superposition.

Materials and experimental methods

Asphalt mixtures

According to the Marshall mix design method, a stone matrix asphalt mixture, SMA-13, was manufactured for the test. Aggregate gradation with the nominal maximum aggregate size of 13.2 mm was demonstrated in Fig. 1. The aggregate was andesite produced in Heilongjiang Province, the properties of the aggregate were shown in Table 1 and Table 2, tests were conducted to find the properties of coarse aggregate and fine aggregate according to the Test Methods of Aggregates for Highway Engineering (JTG E42–2005). The filler was limestone with an apparent relative density of 2.720, to enhance the anti-stripping ability of the asphalt mixture. The asphalt was from China National Petroleum Corporation with a penetration grade of 80/100. Based on the Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering (JTG E20–2011), the properties of the SMA-13 mixture were determined as shown in Table 3.

Fig. 1
figure 1

Aggregate gradation curves for SMA-13 mixtures

Table 1 Basic properties of coarse aggregate
Table 2 Basic properties of fine aggregate
Table 3 The properties of the SMA-13 mixture

Specimens were prepared by a gyratory compactor with standard vertical pressure of 0.6 MPa, a gyratory angle of 1.25°, and a gyratory speed of 30 rpm. The initial diameter of the specimen was 150 mm, the height was 170 mm. Then, considering the requirements for parallel tests, the specimens were cut from the middle and performed the same test. Thus, the final specimen used in the test was 85 mm in height and 150 mm in diameter.

Multi-point penetration test

In previous work [32], the penetration test was proven to simulate the stress state of asphalt pavement. However, the traditional uniaxial penetration test cannot accurately describe the mechanical behavior of asphalt mixture under multi-wheels. Thus, the multi-point penetration test was developed to characterize the deformation superposition effect of asphalt pavements under multi-wheel load.

The apparatus used in this study is shown in Fig. 2. It can be used for multi-point penetration tests in the condition of various spacing. This apparatus consists of the main shaft, disk, and penetration loading shaft. The height of the penetration loading shaft is 100 mm, and the diameter is 20 mm. The size of the disk is shown in Fig. 3. The central hole was used for uniaxial loading. The bar-type holes were used for two-point loading, which can simulate the condition of the distance between 60 and 120 mm. The inner or outer circular holes were used for four-point loading. The distance between the inner holes is 60 mm, and the distance between the outer holes is 68 mm. Different combinations of holes can be used to simulate six-point and eight-point loading with 60 mm or 68 mm wheel spacing.

Fig. 2
figure 2

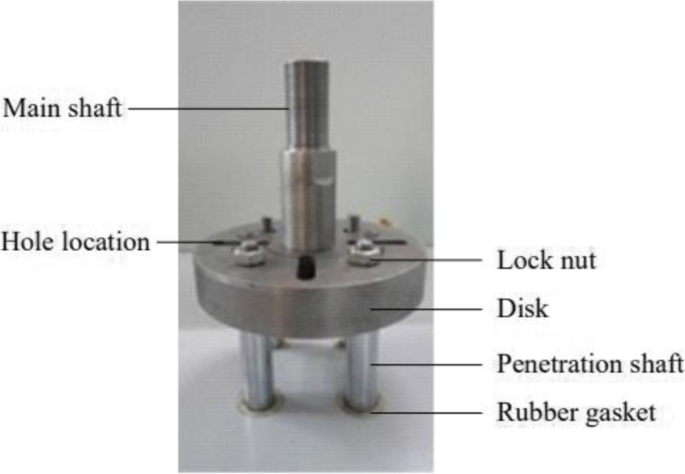

Apparatus of the multi-point penetration test

Fig. 3
figure 3

Size of disk

The loading device used is a universal testing machine (UTM-250). The equipment installation is shown in Fig. 4. In the test, the specimens were placed in a temperature-controlled chamber for at least 3 h, the temperature was set at 60 °C. The specimen was then placed on the loading platform, the rubber mat was pasted below the penetration shaft, and the penetration shaft was lowered until it contacted the specimen, the contact force is 0.200 kN. The UTM-250 performed with strain control mode and obtained the data pair that the loading force varied with the loading depth. The penetration shear curve is shown in Fig. 5. The loading stress converted from the loading force is the ordinate, and the penetration depth is the abscissa.

Fig. 4
figure 4

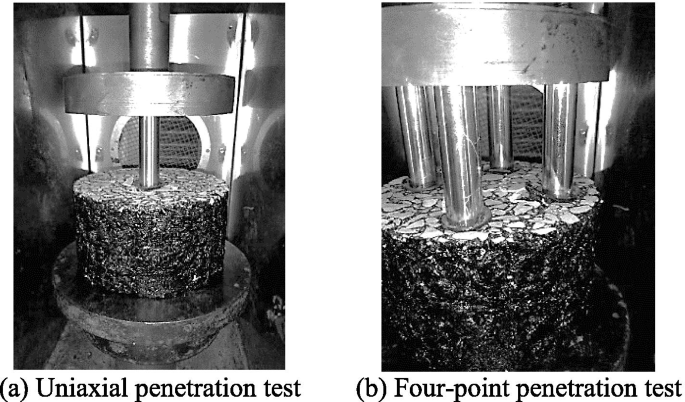

Equipment installation of the penetration test. (a) Uniaxial penetration test. (b) Four-point penetration test

Fig. 5
figure 5

Diagram of penetration curve

In this analysis, the superposition effect coefficient was used to evaluate the deformation superposition characteristics of asphalt mixture. The superposition effect coefficient is sensitive to the type of asphalt mixtures and has a strong correlation with the dynamic stability obtained from the rutting test [33]. This condition indicates that this coefficient can correctly evaluate the influence of asphalt mixture type on the deformation superposition effect under multi-point load and connect well with the asphalt pavement deformation under a wheel load. The smaller superposition effect coefficient demonstrates that the superposition deformation of the asphalt mixture increases significantly, and the material has weak resistance to multi-wheel load. The superposition effect coefficient is calculated by using Eq. (1).

$${\beta}_{\varDelta }=\frac{\varDelta_1}{\varDelta_{\mathrm{n}}},$$
(1)

Where Δ1 is the penetration load growth rate under the uniaxial load, Δn is the penetration load growth rate under the multi-point load. In particular, the penetration load growth rate refers to the slope of the linear growth section, it means the load growth of the asphalt mixture at a penetration depth of 1 mm.

Discrete element model

The 3D skeleton model of the SMA-13 mixture was established to investigate the micromechanical characteristics of the deformation superposition effect. The skeleton particles were the main load-bearing elements of the asphalt mixture. This study adopted a spherical composite body with four grades of 2.36–4.75, 4.75–9.5, 9.5–13.2, and 13.2–16 mm to simulate the skeleton model of the asphalt mixture. The model contained 681 sphere units in total. The gradation and size of the skeleton model were consistent with the asphalt mixture used in the test. The voids of coarse aggregate were regarded as the porosity of the skeleton model.

The bonding behavior of skeleton particles was simulated by using a parallel-bonded contact model on a certain scale. Within the cylinder of two spherical particles, the connection of asphalt and aggregate according to real asphalt mixture was built. This connection can accurately represent the composition of the asphalt mixture, avoid setting the bonding properties of each element of the asphalt mixture, and resolve the problems of slow computing speed and difficult convergence. The parallel-bonded contact model parameters used in this study are shown in Table 4.

Table 4 Elastic and mass properties of particle materials in the discrete element model

Under penetration load, a wall with a diameter of 20 mm and a length of 50 mm was established to simulate the shaft, and a wall with a side length 4 times the diameter of the skeleton model was established to simulate the platform. The stiffness of the shaft and platform was 1 × 108 N·m−1. The skeleton particle model under uniaxial and four-point penetration load is shown in Fig. 6.

Fig. 6
figure 6

Penetration test model of asphalt mixture skeleton particles. (a) Uniaxial penetration test model. (b) Four-point penetration test model

Results and discussion

Failure mode of deformation superposition effect

Previous studies showed that the shear failure mode of the asphalt mixture in the uniaxial penetration test is similar to that of pavement core [34]. However, the uniaxial penetration method cannot accurately describe the superposition damage of asphalt pavement. On the basis of the method mentioned in Multi-point penetration test Section, uniaxial and four-point penetration tests were conducted for SMA-13 with a temperature of 60 °C and a loading rate of 1 mm/min. This process was performed to obtain and compare the failure mode of the asphalt mixture. The penetration curve is shown in Fig. 7.

Fig. 7
figure 7

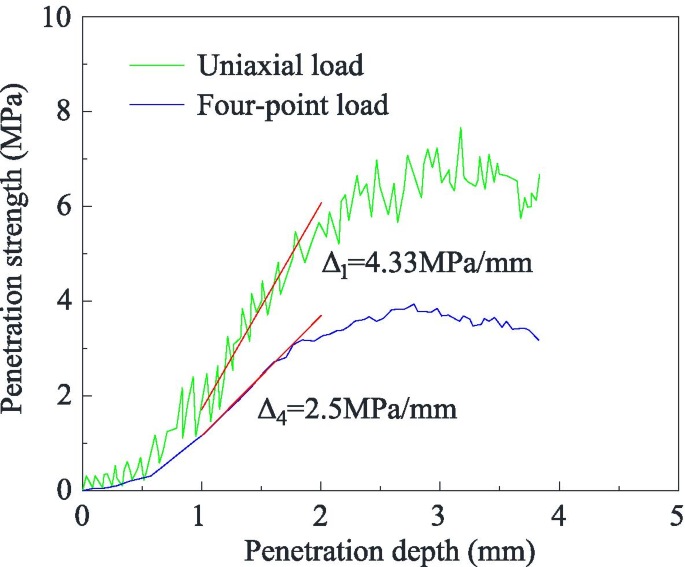

Uniaxial and four-point penetration shear curves of SMA-13 mixture

As shown in Fig. 7, the load growth rate under uniaxial and four-point penetration of the SMA-13 mixture is 4.33 and 2.50 MPa/mm respectively. This finding indicates that resisting deformation under a four-point penetration load is more difficult for the asphalt mixture.

A direct result is shown in Fig. 8, which illustrates the crack patterns of asphalt mixture under uniaxial and four-point loads.

Fig. 8
figure 8

Crack patterns of SMA-13 mixture. (a) Under the uniaxial load. (b) Under the four-point load

Under uniaxial penetration load, the cracking path is from the center to the edge of the specimen, indicating that the edge cracking is the main reason for the strength loss of the mixture. Under four-point penetration load, the crack path is the edge of the specimen and the connecting line of the four penetration points, indicating that the deformation is caused by the joint action of four penetration shafts. The deformation appears as a superposition phenomenon. This condition results in considerable cracking of the sample. Thus, the resistance to deformation decreases, and the load growth rate is small. Specifically, Δ4 is less than Δ1, and the superposition coefficient is less than 1.

Effect of the wheel group on deformation superposition

The impact of wheel spacing and the number of wheels on the superposition effect in asphalt mixtures is quantitatively discussed to investigate the external cause of the deformation superposition in asphalt mixtures.

Effect of wheel spacing

Wheel spacing is regarded as the key factor affecting the deformation behavior of asphalt mixture. This section quantificationally examines the influence of wheel spacing on the deformation superposition effect of the SMA-13 mixture by using the aforementioned test method. The four-point penetration tests with the wheel spacing of 54, 60, and 65 mm were conducted, the loading rate was 1 mm/min, and the test temperature was 60 °C. The results from the various wheel spacings exhibit the variation of superposition parameters, as shown in Figs. 9 and 10.

Fig. 9
figure 9

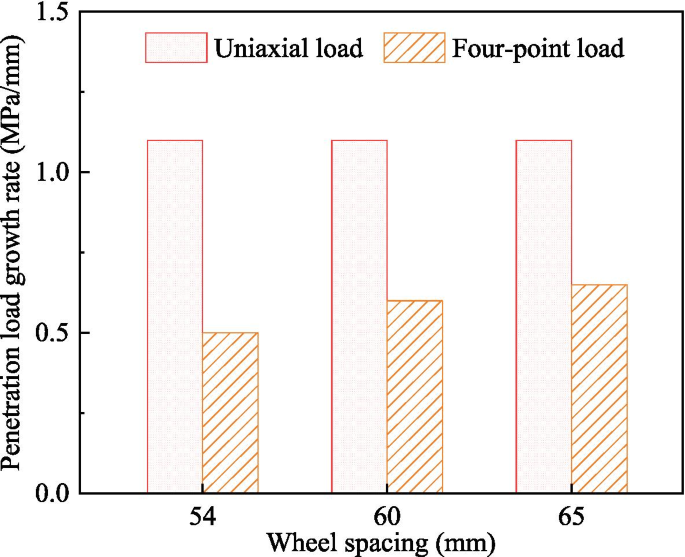

Penetration load growth rate with different wheel spacings

Fig. 10
figure 10

Superposition effect coefficient with different wheel spacings

Figure 9 presents the penetration load growth rate in uniaxial and four-point penetration tests. On the whole, the penetration load growth rate generated by the uniaxial penetration is greater than that by the four-point. The result of uniaxial penetration is 1.1 MPa/mm, whereas the maximum value of four-point penetration is 0.65 MPa/mm, which is only 59% of the former. This finding confirms the analysis in Failure mode of deformation superposition effect Section and indicates that the asphalt mixture is prone to deform under the four-point penetration load. Compared with the result under various four-point loads, the penetration load growth rate increases with wheel spacing. This phenomenon demonstrates the important effect of wheel spacing on superimposed deformation.

A direct explanation of the influence of wheel spacing on deformation superposition is illustrated in Fig. 10. Specifically, the superposition effect coefficient gradually increases with the rise of wheel spacing. For instance, the coefficient is 1.2 times higher for spacing of 54 mm compared with that for spacing of 65 mm. The increase in the superposition effect coefficient suggests that the resistance to superposition deformation of asphalt mixture is better. This result is attributed to the increase in wheel spacing.

Effect of the number of wheels

The preliminary analysis in Failure mode of deformation superposition effect Section showed that the number of wheels is another important factor for the deformation superposition of the asphalt mixture. In this section, the deformation superposition effect under two-point, four-point, and six-point penetration loads was investigated. The test temperature was 60 °C, the loading rate was 1 mm/min, and the wheel spacing was 65 mm. The results from the various number of wheels exhibit the variation of superposition parameters, as shown in Figs. 11 and 12.

Fig. 11
figure 11

Penetration load growth rate with different number of wheels

Fig. 12
figure 12

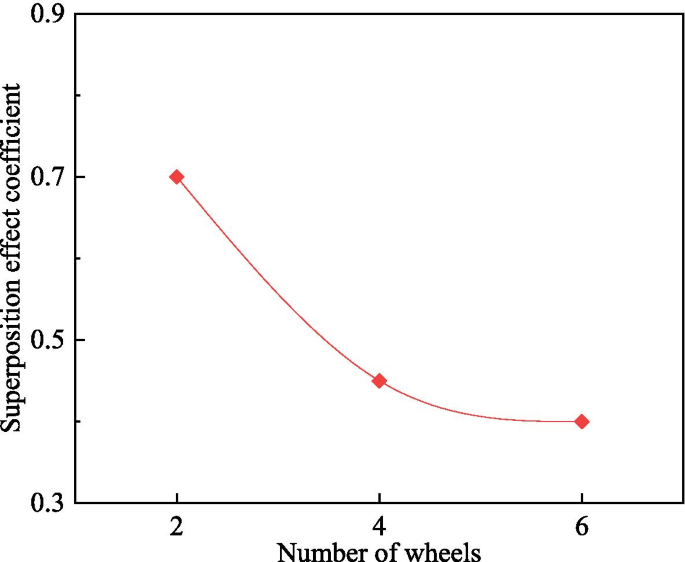

Superposition effect coefficient with different number of wheels

In Fig. 11, the penetration load growth rate is smaller under multi-point load compared with that under uniaxial load. This condition is the same as the previous analysis in Effect of wheel spacing Section. Figure 10 displays that the penetration load growth rate decreases with the number of wheels. The penetration load growth rate under uniaxial and six-point loads is 1.1 and 0.4 MPa/mm, and the latter decreases by 63.6%. This finding shows that the number of wheels is an important parameter affecting the superimposed deformation of asphalt mixture, because it has the potential to increase the stress transferring path in the internal structure.

The deformation superposition effect coefficient varies with the number of wheels, as illustrated in Fig. 12. The superposition effect coefficient decreased with the growth number of wheels. The coefficient decreases from 0.66 in the case of two-point loading to 0.38 in the case of six-point loading, and the latter decreases by 42.9%. This finding shows that the deformation superposition effect becomes significant with the increase of the number of wheels. The resistance of asphalt mixture to deformation is reduced. Compared with light vehicles, we should pay attention to the multi-wheel heavy vehicles, which aggravate the possibility of superimposed deformation damage.

Micromechanical characteristics of deformation superposition

In Effect of the wheel group on deformation superposition Section, two factors causing the deformation superposition of asphalt mixture, namely, wheel spacing and the number of wheels, were discussed. They were the external reasons that cause the deformation superposition of the asphalt mixture. In the process of deformation, the variation of the micromechanical characteristics of asphalt mixture under multi-wheel load is still unclear. The importance of understanding the micromechanical characteristics is that it can guide asphalt mixture design for anti-superimposed deformation properties. Therefore, this section aims to clarify the micromechanical characteristics of deformation superposition behavior under different wheel group conditions based on DEM.

Wheel spacing

In this section, the uniaxial and the four-point penetration tests with wheel spacings of 20, 50, and 65 mm were simulated. The penetration curves are shown in Fig. 13. The black curve describes the result in the uniaxial penetration test, and the red, green, and purple curves describe the result under the wheel spacings of 20, 50, and 65 mm.

Fig. 13
figure 13

Penetration curves with different wheel spacings

As shown in Fig. 13, a linear relationship is found between penetration strength and depth, and the material mainly shows linear elastic characteristics at the initial stage of simulated loading. The mixture was destroyed until the load reached its peak, and the bearing capacity declined rapidly. The slope of the linear segment represents the penetration load growth rate. The slope and peak load are larger in uniaxial tests compared with that in multi-point tests. For instance, the former is 0.13 and 0.65 MPa, whereas, the maximum values of the latter are 0.12 and 0.35 MPa. This finding indicates that the asphalt mixture consistently has low resistance to multi-wheel action. The whole simulation loading process is consistent with the laboratory test, thereby reflecting the reliability and accuracy of the simulation. For multi-point simulation tests, the penetration load growth rate gradually increases with the increase in wheel spacing. The results agree with the reported laboratory test in Effect of wheel spacing Section.

The superposition effect coefficient obtained from the skeleton model is shown in Fig. 14. The values of the superposition effect coefficient are 0.43, 0.55, and 0.77 for the wheel spacing of 20, 50, and 65 mm, respectively. This finding demonstrates that the model deformation under four-point loads is superimposed compared with that under uniaxial loads. The superposition coefficient increases with the decrease in wheel spacing. This result is the same as that obtained in Effect of wheel spacing Section.

Fig. 14
figure 14

Superposition effect coefficient at different wheel spacings

Figure 15 shows that the number of tensile chains varies with depth. In the penetration process, the number of force chains gradually decreases. This phenomenon suggests that the strength of physical adhesion between the asphalt and the aggregate is reduced. As shown in Fig. 16, the decrement of tensile chains decreased with the increase in wheel spacing, the force chains at the penetration depth of 4 mm are reduced by 272, 260, and 249 for the wheel spacing of 20, 50, and 65 mm compared with that at 1 mm. This result indicates further superimposed deformation and damage to the asphalt mixture.

Fig. 15
figure 15

Number of tensile chains at various depths

Fig. 16
figure 16

Decrement of tensile chains with different wheel spacings

The previous consequence can be illustrated by the force chain evolution in Fig. 17. The lines in the figure represent the contact force between the skeleton particles, and the blue and red lines denote the pressure and tensile chain, respectively.

Fig. 17
figure 17

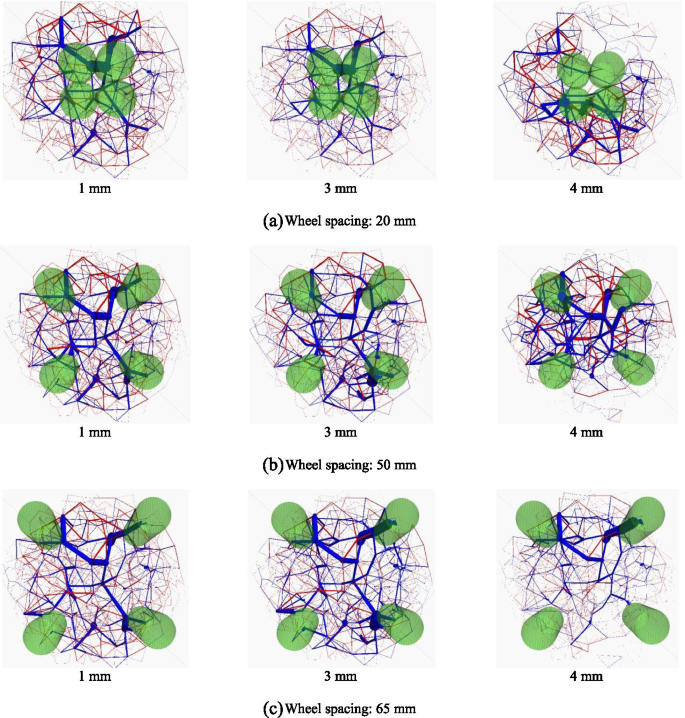

Distribution of force chains under different wheel spacings. (a) Wheel spacing: 20 mm. (b) Wheel spacing: 50 mm. (c) Wheel spacing: 65 mm

During the whole loading process, the number of tensile chain decreases with the penetration depth. At the 1 mm penetration depth, the number of tensile chains reaches a maximum. At the 4 mm depth, a large number of tensile chains are broken. Under the four-point load, cracks are generated from the center to the edge of the model, and deformation superposition is destructive.

With the increase in wheel spacing, the number of tensile chains decreases significantly, and the skeleton model is close to the overall loading state. For the wheel spacing of 50 mm, part of the tensile chain breaks at the edge of the model. For the wheel spacing of 65 mm, only part of the force chain under the penetration shaft breaks. Under the four-point load, the number of broken tensile chains increases with the decrease in wheel spacing, and the superposition effect is significant.

Number of wheels

In this section, the uniaxial, two-point, four-point, six-point, and eight-point penetration tests were simulated. The penetration curves are shown in Fig. 18, and the superposition coefficient obtained from the skeleton model is shown in Fig. 18.

Fig. 18
figure 18

Penetration curves with different numbers of wheels

As shown in Fig. 18, the multi-point action has a significant effect on the deformation superposition behavior of the asphalt mixtures. This condition is consistent with the previous analysis in Number of wheels Section. With the increase in the number of penetration shafts, the peak load and penetration load growth rate of the model show a decreasing trend. Under the two-point, four-point, six-point, and eight-point loads, the former is 0.31, 0.26, 0.22, and 0.16 MPa, and the latter is 0.078, 0.065, 0.073 and 0.053 MPa/mm, respectively. These results provide important insights into the superimposed deformation damage under multi-wheel load. As shown in Fig. 19, the superposition coefficient is 0.59, 0.52, 0.49, and 0.41 in the aforementioned loading conditions. These results support the idea of the superposition effect being enhanced by multi-wheel load. This condition is consistent with the conclusion obtained in Effect of the number of wheels Section.

Fig. 19
figure 19

Superposition effect coefficient with different numbers of wheels

The results in Fig. 20 show the changes in internal tensile chains of the asphalt mixture during the deformation superposition. A significant reduction is found in tensile chains when the number of loads increased. As shown in Fig. 21, under the two-point, four-point, six-point, and eight-point loads, the number of force chains decreases at 4 mm is 203, 250, 307, and 337, respectively, compared with the peak value of tensile chains at the depth of 1 mm. With the increase in the number of wheels, the number of tensile chains decreases significantly. This finding indicates that the more the number of wheels, the more serious the deformation and damage of asphalt mixture under multi-wheel load. This result is consistent with the conclusion of the laboratory experiment above.

Fig. 20
figure 20

Number of tensile chains with different numbers of wheels

Fig. 21
figure 21

Decrement of tensile chains with different numbers of wheels

Figure 22 illustrates the variation of the force chain under the different number of wheels. The meaning of the lines in the figure is the same as in Wheel spacing Section.

Fig. 22
figure 22

Distribution of tensile chain under the different number of the wheels. (a) Number of the wheels: 1. (b) Number of the wheels: 2. (c) Number of the wheels: 4. (d) Number of the wheels: 6. (e) Number of the wheels: 8

At the same penetration depth, the high number of wheels corresponds to the low number of the tensile chain. The previous analysis in 3.2.2 indicates that the superposition coefficient of the skeleton model is smaller, the deformation superposition effect is more significant, and asphalt mixtures have weak resistance to deformation.

Specifically, for the uniaxial penetration test, the number of tensile chains is 1006 at a penetration depth of 1 mm, and the skeleton model has strong resistance to deformation superposition. This condition is the reason that the shear stress of the whole skeleton structure points to the external, and the full skeleton structure shares shear deformation. Thus, tensile chains are found. When the penetration depth reaches 4 mm, the number of tensile chains in the skeleton model decreases remarkably. Under the eight-point load, the number of tensile chains of the skeleton model is 893 at the depth of 1 mm, whereas the number of tensile chains of the skeleton model rapidly decreases at the depth of 4 mm. Affected by the superposition effect, the tensile chains of the skeleton model near the penetration shaft decrease, and the bearing capacity of the structure decreases rapidly. Under the eight-point load, the number of tension chains at different penetration depths is the minimum, and the asphalt mixture has poor resistance to structure deformation.

Conclusions

This study focused on the deformation superposition behavior of asphalt mixture and its micromechanical characteristic. The multi-point penetration tests were employed. The influences of wheel spacing and the number of wheels were investigated, respectively. Based on the DEM, the micromechanism of deformation superposition behavior under different wheel spacing and the number of wheels were further studied. The main conclusions are summarized as follows.

The penetration load growth rate and superposition effect coefficient were adopted to quantitatively evaluate the deformation superposition characteristics in asphalt mixture. It was found that the penetration load growth rate and superposition effect coefficient are decreased under the intensifying of multi-wheel action. Specifically, these two parameters increase with wheel spacing, while those decrease with the number of wheels. This result indicates that the deformation superposition effect is significant under the multi-wheel load. From a failure mode perspective, the reason for this is because the action of multi-wheel load increases stresses transferring path in the internal structure of asphalt mixture.

Micromechanical analysis based on virtual penetration tests shows that the tensile forces within asphalt mixture tend to decrease during multi-point penetration tests. The deformation superposition effect of asphalt mixture can be described by using the deformation superposition effect coefficient and reduction of the tensile chain in skeleton model. The discrete element model was used to verify the deformation superposition characteristics of the asphalt mixture under different factors. The results show that the deformation superposition effect coefficient of the skeleton model decreased with the wheel spacing and the number of wheels. The greater the reduction of the tensile force chain, the greater the superimposed deformation, and the deformation superposition effect coefficient is negatively correlated with the reduction of the tensile chain. The tensile chain represents the adhesive strength between aggregates in asphalt mixture, thus, the intrinsic reason for deformation superposition is the decrease of the adhesive strength of the material.

Availability of data and materials

All data used or generated by this study is available from the corresponding author by reasonable request.

Abbreviations

DEM:

Discrete element method

SMA:

Stone matrix asphalt

UTM:

Universal testing machine

Δ 1 :

Penetration load growth rate under the uniaxial load

Δ n :

Penetration load growth rate under the multi-point load

Δ 4 :

Penetration load growth rate under the four-point load

β Δ :

Superposition effect coefficient
