Micro-morphologies of SBS modifier at mortar transition zone in asphalt mixture with thin sections and fluorescence analysis

Abstract

The microstructure control of modified asphalt, especially the micro-dispersion of the SBS modifier in the mortar transition zone, is a critical technology for the performance design of modified asphalt. To characterize the micro-dispersive morphology of SBS modifiers, thin-section preparation techniques that can be used to analyze the original microstructure of the asphalt mixture were proposed and introduced in this study. Flexible resin is filled into the mixture at vacuum conditions to ensure accepted sample conditions for preparing thin sections of asphalt mixture. The morphology parameters, including SBS area ratio, box dimension, SBS average particle area and its coefficient of variation, area-weighted average axis ratio, and coefficient of variation, were plotted from fluorescence images to characterize the micro-morphological distribution of the SBS modifier in detail. Results have shown that the area ratio increased with the increase in SBS content, while the box dimension was reduced and the distribution uniformity of the particles decreased. The superfluous SBS modifier in the binder at a too high adding ratio will decrease the value of the box dimension. Lower modification temperature worsened the SBS modifier in the mixture, resulting in a wide range of particle size, higher axis ratio, and higher area ratio. The micro-morphologies of SBS in the asphalt mixture phase varied a lot from the asphalt binder phase. The additional materials of mineral filler and fine aggregate, together with the other heating processes, will significantly influence the swelling state and particle size of the SBS modifier.

Introduction

Asphalt pavement is laid and compacted from an asphalt mixture, considered a composite material with coarse aggregates, fine aggregates, mineral filler, asphalt binder, and other additives. The performance of the asphalt binder plays a vital contribution to the final road performance of asphalt pavement, although it is only weighted at around 5% of the whole mixture. Many innovative modifiers, including fibers [1, 23], polymers [26, 31], and Nano-clay [20], were developed to enhance the performance of asphalt binder. Among these modifications, SBS (Styrene–butadiene–styrene) modified asphalt binder is the most widely accepted material for prolonging the service life of asphalt pavement.

The microstructure of modified asphalt binder and the inner structures of a mixture are believed to influence the binder’s performance and its corresponding mixture significantly. Many research methods have been developed for micro-scale inner structure analysis of asphalt mixtures. Wang et al. [24] used digital image processing techniques to quantify aggregate skeleton structure, including orientation, distribution, and contact properties of the aggregate. In collaboration with other laboratories, Hassan et al. [10] used X-ray computed tomography and optical microscopy to observe the internal structure of the mixture, especially the distribution of internal voids in recycled asphalt mixture. Navaro et al. [18] proposed a microscopic observation technique for observing the interface between new binder and aged binder in recycled asphalt pavement, then quantified the influence of production parameters, material temperature, and mixing time on the surface morphology of binder clusters. Xiao et al. [25] studied the SBS morphologies in asphalt binder with fluorescence technology and concluded the relationship between SBS morphologies and viscoelastic binder properties.

The modifier morphologies in asphalt mixtures are also widely studied but were seldom quantitatively characterized. The asphalt binder is widely accepted as a colloidal structure [8, 19], with a colloidal index describing the structure stability [13, 16]. Such structuring in asphalt binder is a big challenge for asphalt modification. Sufficient distribution of modifiers and interfacial bonding are the critical issues for ensuring a high-performance modified binder. The Atomic force microscope, which can map different materials in the tested area, was used many years ago to study asphalt microstructures [9, 14]. Shan et al. [22] used small-angle neutron to characterize the structure of the neat binder, SBS modifier, and SBS modified binder at the nanoscale and confirmed that the mechanism of SBS modification was a physical modification of the nanoscale structure.

However, only limited literature focused on the micro-morphologies of SBS modifiers in the mortar transition zone of asphalt mixtures. The relationship between SBS morphologies in the asphalt binder situation and the situation in the asphalt mixture is still unknown. Moreover, research on the internal morphology structure of the SBS modifier in the asphalt mixture is of great significance for improving the service performance of the final asphalt pavement. Fluorescence microscopy technology, an image-based analysis technique, has played a vital role in polymer-modified asphalt research.

Therefore, the objectives of this research are:

  1. 1.

    Propose and prove a feasible specimen preparation method for fluorescence microscopy analysis. The specimen should be qualified for fluorescence image analysis to characterize the micro-dispersive morphology of SBS modifiers.

  2. 2.

    Define the image processing and analysis techniques to characterize SBS micro-dispersive morphologies in mortar transition zone in asphalt mixtures.

  3. 3.

    Characterize the SBS modifier in the mortar transition zone in an asphalt mixture, with cross-section specimens to provide an excellent technique to enhance the quality of the SBS modified binder and its corresponding mixture through improving the SBS morphologies in the mixture.

Materials and research program

Materials

As Table 1 shows, an asphalt binder with a 69 penetration value and a 46 °C softening point was used in this research for modified binder and asphalt mixture design. The Linear chemical structure SBS modifier, with physical properties displayed in Table 2, was used to modify the asphalt binder. Basalt was used under the mixture gradation design guide for asphalt mixtures. The finalized aggregate gradation of AC-13 was presented in Table 3, with an optimal binder content of 4.9 wt%.

Table 1 Physical properties of the used grade asphalt binder
Table 2 Physichemical properties of the SBS modifier used for asphalt modification
Table 3 Aggregate gradation that used in this research

The SBS modifier was added into the liquid asphalt binder gradually with a high-speed shear mixer, with the following modification process: First, the asphalt binder was heated to 145 °C to ensure an acceptable low viscosity for adding the modifier. Secondly, a certain amount of SBS modifier was added into the liquid state of the asphalt binder, which was kept in a heated environment to ensure stable temperature conditions. Thirdly, the SBS modifier was mixed with the liquid binder with a high-speed shear machine at a specific shear rate for 1 h to obtain a homogeneous modifier distribution. In the end, the SBS modified binder was placed in an oven at 100 °C for at least 30 min to promote the swelling of the SBS modifier [7, 21]. Then, these modified asphalt binders were used for asphalt mixture design.

The literature claims that the modification process, including SBS adding content, conditioning temperature, high-speed shearing duration, and shearing rate, has a significant impact on the final properties of SBS binder due to the different distribution status of SBS modifier in asphalt binder resulting from different modification conditions [2, 30]. Therefore, the influence of SBS adding content, modification temperature, and shearing rate on the SBS morphologies was studied. Investigated conditions include the modification conditions of 2 wt%, 3 wt%, 4 wt%, 5 wt%, and 7 wt% for SBS adding content, 130 °C, 145 °C, 160 °C, and 175 °C for shearing conditioning temperature, and 2000 rpm, 3500 rpm, and 5000 rpm for shearing rate.

Research program

Figure 1 describes the research program using fluorescence microscope analysis to characterize the morphologies of SBS particles in the asphalt mixture with the help of the thin section preparation method. The SBS modifier was first added to the original asphalt binder under the modification conditions discussed in the previous section, and then the AC-13 asphalt mixture was mixed and compacted. The thin section preparation method, which will be detailed explained in the section of the Micromorphology characterization method, was adapted to obtain the cross-section of asphalt mixtures. In the end, thin sections of the SBS modified mixture were placed under a fluorescence microscope to characterize the SBS morphologies quantitatively.

Fig. 1
figure1

Research program for SBS morphology characterization in asphalt mixture

Micromorphology characterization method

Thin section preparation

Microscope analysis of material surface inspection always requires a flat surface with very low roughness to ensure precise imaging results [6, 27]. Asphalt mixture, a porous solid material containing hard and soft constituents, can not be directly used for microscope surface analysis [5, 12, 18]. The rough surface of the asphalt mixture will significantly decrease the imaging efficiency. Therefore, the thin section preparation method was proposed and approved to obtain a flat surface of asphalt mixture that enables precise imaging analysis. The experimental flow of thin section preparation is shown in Fig. 2, with steps of epoxy filling, cutting, and grounding. The detailed steps can be described as follows:

  1. 1.

    Specimens of asphalt mixture were cut into blocks of 2 cm × 2 cm × 5 cm or drilled into cylinders with a diameter of 3 cm.

  2. 2.

    Epoxy was then filled into the air voids in the mixture by placing the specimen in liquid epoxy under vacuum for 5 min and then placed at room temperature for another 10 h for epoxy hardening to avoid micro-cracks during the second cutting stage for the thin specimen. The vacuum condition in which the specimen was placed was used in this research to ensure all trapped air was removed and replaced with liquid epoxy before hardening.

  3. 3.

    Epoxy-filled mixtures were then cut into thin specimens with a thickness of approximately 3 mm. A specialized cutting machine (Fig. 2) was used in this step, a Struers Minitom cutting machine with an accuracy of 0.01 mm.

  4. 4.

    The planned observation surface was grounded and then cleaned with a polishing machine and an ultrasonic washing machine. Ultrasonic washing of thin sections can then be used for fluorescence microscopic analysis.

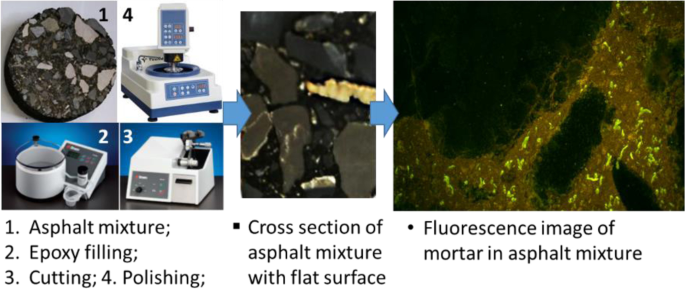

Fig. 2
figure2

Thin section preparation of asphalt mixture for fluorescence microscopic analysis

With this thin section preparation method, a flat cross-section of asphalt mixture that retains its original inner micro-structure can be obtained for further microscope image analysis. Because alteration was not made even during the polishing stage, heat or reagents that could affect the morphology were not used. So the fluorescence microscopy study was carried out on the original asphalt mixture. Figure 2 shows an example of a fluorescence image of SBS-contained mortar in an asphalt mixture.

Micromorphology characterization

After the thin section of asphalt mixture was prepared, a fluorescence microscope was used to quantitatively analyze the dispersion form of the SBS modifier in the mortar transition zone between aggregates in the asphalt mixture. MATLAB (Matrix Laboratory) performed RGB (Red Green Blue) image analysis and processing with microscopic fluorescence images of the asphalt mixture. RGB means RGB color system. It constructs all the colors from the combination of the Red, Green, and Blue colors. The Red, Green, and Blue use 8 bits each, with integer values from 0 to 255 [15, 17].

Figure 3 presents the SBS morphology characterization steps. The distribution of the SBS modifier in the mortar area of the asphalt mixture is shown in Fig. 3a. This area contains a minimal amount of coarse aggregate (dark black-green part), mineral powder, fine aggregate, asphalt, and SBS modifier (bright green-yellow area). The fine mortar with a binder, mineral powder, and fine aggregate shows a light brown color. Firstly, to reduce the influence of the background caused by uneven light, the MATLAB imopen function was used to get the background of the analyzed image, and then the MATLAB imsubtract function was used to remove this background, which is presented in Fig. 3c. Secondly, RGB color image analysis and processing were conducted to define the pixel threshold of the SBS phase, mineral powder, and fine aggregate. As Fig. 3d indicates, the black and white map of SBS distribution at the mortar transition zone in the asphalt mixture is obtained by self-programming, and the right one shows the mineral powder and fine aggregate distribution, while the left one shows the SBS modifier.

Fig. 3
figure3

Explanation of SBS morphology characterization steps

The six parameters used to characterize the SBS morphologies in the mortar transition zone are SBS area ratio, SBS box dimension, area-weighted average axis ratio of SBS, coefficient of variation in axis ratio, SBS average particle area, and coefficient of variation in average particle area. A wider range of microscope images of 1000*1000 pixels was used in the statistical evaluation to ensure the accuracy of image analysis. Furthermore, these six indicators are calculated by self-programming in MATLAB. Their representative physical meanings are explained in Table 4. The more uniform the particle distribution in the two-dimensional area is, the closer the box dimension of the region is to 2. Figure 4 explains the relationship between box dimension and particle distribution uniformity in areas of the same size. The exact number of particles of the same size are placed in the same block but with different distribution uniformity. Obviously, the better the uniformity is, the closer the box dimension is to 2.

Table 4 Physical meaning of the used microscopic morphological parameters

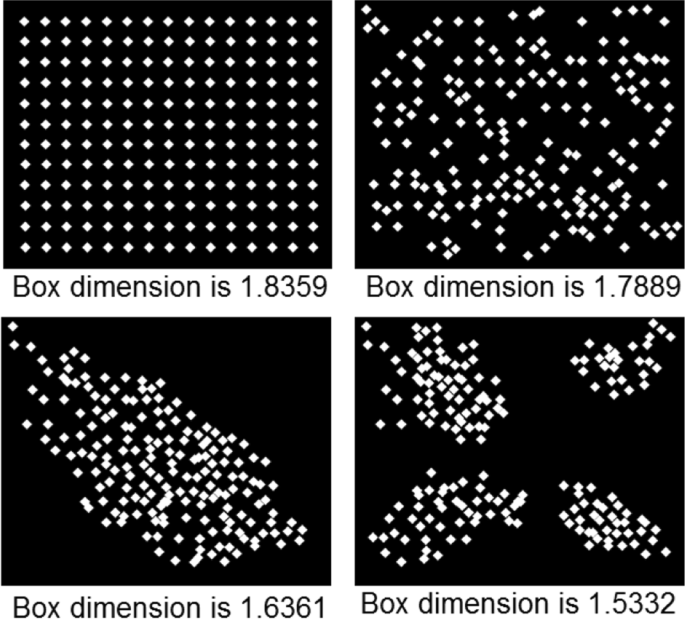

Fig. 4
figure4

Graphic explanation of the relation between box dimension and particles distribution uniformity

The axis ratio of the SBS modifier was calculated from fluorescence image analysis to quantify the shape of SBS particles in the mixture phase. It is defined as the axis ratio of the equivalent oval-shaped area of the analyzed two-dimensional SBS particle. The area-weighted average axis ratio was then defined and used to minimize the influence of particle areas. The area-weighted average axis ratio can be calculated with Eq. (1), and Eq. (3) explains the calculation of the coefficient of variation in the axis ratio.

$$M=\frac{{\sum_{i=1}^n} A_i \times P_i} {\sum_{i=1}^n A_i}$$
(1)
$$S=\sqrt{\frac {\sum_{i=1}^n A_i \times (P_i-M)^2} {\sum_{i=1}^n A_i}}$$
(2)
$$C.V=\frac{S}{M}\times 100\%$$
(3)

Where \(\mathrm{M}\) is the area-weighted average axis ratio, \({A}_{i}\) Is the area of no. i particle, \({P}_{i}\) is the equivalent oval-shaped area of no. i particle, N is the particle number in the analyzed area, \(\mathrm{S}\) is the standard deviation of axis ratio, \(\mathrm{C}.\mathrm{V}\) is the coefficient of variation in axis ratio.

Results and discussion

SBS micro-morphologies in mix

The influence of modification conditions on SBS micro-morphologies in asphalt mixtures was studied with the help of the thin section preparation method and fluorescence image analysis. Magnification of 200 times for fluorescence images was presented in Figs. 5, 8, and 11. In this research, the modification conditions have the following three categories.

  • The SBS adds ratio dependency: the SBS adding ratios include 2 wt% (weight), 3 wt%, 4 wt%, 5 wt%, and 7 wt%, under the shearing conditions 160 °C for temperature and 3500 rpm for shearing rate.

  • Modification temperature dependency: the modification temperatures include 130 °C, 145 °C, 160 °C, and 175 °C, under a shearing rate of 3500 rpm and a 30% adding ratio.

  • Temperature dependency: the modification temperatures include 130 °C, 145 °C, 160 °C, and 175 °C, under a shearing rate of 3500 rpm and a 30% adding ratio.

  • The Shearing rate dependency: the shearing rates include 2000 rpm, 3500 rpm, and 5000 rpm, under a modification temperature of 160 °C SBS adding ratio was 2 wt% and 7 wt%.

Fig. 5
figure5

Fluorescence images of SBS modifier in mixtures at a different adding ratio (image size: 1.4 mm × 1.0 mm)

SBS adding ratio dependency

Figure 5 shows the fluorescence microscopy images of the SBS modifier in the asphalt mixtures under blue excitation light. It illustrates that the cross-section of an asphalt mixture with a flat surface can be successfully used in fluorescence microscopy analysis. The distribution of the SBS modifier in the mortar transition zone can be detected under blue excitation light. Higher SBS content in the asphalt binder will result in a more bright green-yellow area in the fluorescence microscopy images of the mortar transition zone, representing a higher area ratio of the SBS modifier in the asphalt mortar.

The morphology parameters were then plotted in Fig. 5 for further analysis. Figures 6 and 7 presents how the six micromorphology parameters of the SBS modifier vary with modifier content. It can be seen from Fig. 6 that with the increase in SBS content, the SBS area ratio in asphalt mortar first rises and then decreases, reaching the highest value of 7.86% at 5 wt% content, indicating that the asphalt mixture preparation process of different SBS content has different effects on the SBS area ratio. Figure 6 also shows that with the increase in SBS content, the box dimension increased initially. The reason is that the number of polymer particles in the 3 wt% SBS sample significantly increased compared with the 2 wt% sample, which improves the dispersion uniformity in asphalt mortar. So the detected image morphologies of SBS particles in the mortar transition zone will be changed, resulting in a different SBS area ratio. When SBS content is increased to 5 wt%, the SBS particle size in asphalt mortar is more prominent, and the distribution is denser than in the lower content samples. However, due to the SBS dispersion in asphalt mortar becoming worse, which is related to the superfluous SBS modifier in the binder at too high a ratio, the box dimension decreases significantly.

Fig. 6
figure6

Influence of SBS content on the area ratio and box dimension in mix

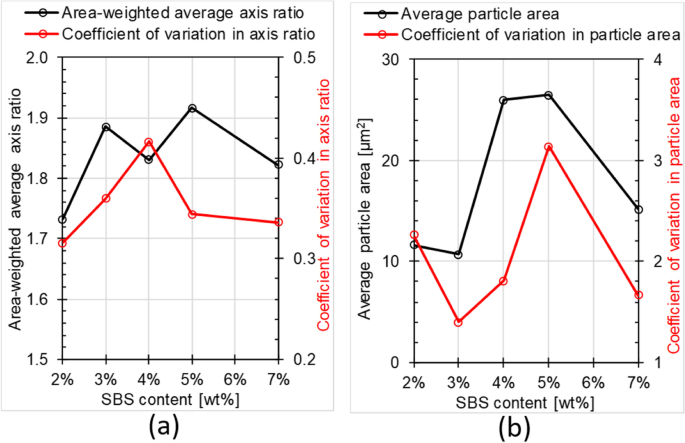

Fig. 7
figure7

Influence of SBS content on the axis ratio (a) and particle area (b) in mix

Figure 7 illustrates that when the content increases from 3 wt% to 7 wt%, the particle area first rises sharply and then decreases, so it has no linear relationship with the SBS content in a binder. The trend of the area variation coefficient is similar to the particle area curve. When the adding ratio increases from 5 wt% to 7 wt%, the size difference between SBS particles in asphalt mortar becomes smaller, and the dispersion is better. In addition, Fig. 7 shows that the area-weighted average axis ratio in asphalt mortar fluctuates in the range of 1.732 to 1.916, and the coefficient of variation remains at a low level, indicating that the content has little effect on the shape of polymer particles in the asphalt mortar.

Modification temperature dependency

Figure 8 presents interesting differences in fluorescence images resulting from different modification temperatures. Specimens with binder modified at 130 °C have the brightest color of SBS particles, while specimens with binder modified at other three higher temperatures have a darker color. The reason is that 130 °C is not enough to ensure a homogenous distribution. The size of shining particles of 130 °C specimens varied from 8 to 40 μm, illustrating that the SBS modifiers were not well dispersed [3, 7, 21]. When the modification temperature increases, the size of dispersed SBS particles decreases, and therefore, the fluorescence image gets a bit darker.

Fig. 8
figure8

Fluorescence images of SBS modifier in mixtures at different conditioning temperature (image size: 1.4 mm × 1.0 mm)

Figure 9 presents the influence of modification temperature on the particle area and axis ratio of the SBS modifier in the mortar transition zone. It agrees with Fig. 8 that the SBS particles got much smaller when their modification temperature increased from 130 °C to 145 °C. Specimens with binder modified at 145 °C, 160 °C, and 175 °C had similar values of particle area of SBS modifier. The coefficient of variation in particle area presents the same changing law. The parameter of the average axis ratio and its coefficient of variation had the same relation to modification temperature as that of particle areas. Specimens with binder prepared at a modification temperature of 145 °C have the lowest average axis ratio. It illustrates that a higher modification temperature is necessary to decrease the SBS particle size and axis ratio.

Fig. 9
figure9

Influence of modification temperature on the particle area and axis ratio in the mix

Figure 10 concludes the relationship between area ratio and modification temperature, as well as the relationship between box dimension and modification temperature. The box dimension of tested specimens varies from 1.63 to 1.72, showing no apparent relationship with the modification temperature. Higher modification temperature would result in smaller SBS particles in the mortar area, resulting in a change of area ratio from 5.34 to 1.5% when the modification temperature increased from 130 °C to 145 °C. However, higher modification temperatures of 160 °C and 170 °C will promote the swelling process of the SBS modifier, resulting in a slight increase in area ratio [11, 28, 29].

Fig. 10
figure10

Influence of modification temperature on the area ratio and box dimension in mix

Shearing rate dependency

Figure 11 shows the fluorescence microscopy images of the SBS modifier in the mixtures with binder modified by the different shearing rates. Firstly, the fluorescence images of the 2 wt% SBS group and the 7 wt% SBS group had significant differences. Specimens of the 7 wt% SBS group had significantly brighter fluorescence images than those of the 2 wt% SBS group. Secondly, the influence of the shearing rate was highlighted in the case of the 7 wt% SBS group. Differences in fluorescence images due to increasing shear rate were negligible when a 2 wt% modified binder was used, while there were apparent differences with a 7 wt% modified binder.

Fig. 11
figure11

Fluorescence images of SBS modifier in mixtures at a different shearing rate (image size: 1.4 mm × 1.0 mm)

Table 5 concludes the micro-morphologies of SBS particles in mixtures with asphalt binder modified at different shearing rates. It shows that the area ratio increases with the increase in shearing rate, both in the 2 wt% SBS group and the 7 wt% SBS group. Specimens of the 7 wt% SBS group almost have a linear relationship between area ratio and shearing rate, while their box dimension stays constant. Specimens of the 2 wt% SBS group have the highest area ratio and box dimension at the shearing rate of 3500 rpm. Specimens of the 7 wt% SBS group have a highest average particle area than those of the 2 wt% SBS group, while specimens with 5000 rpm and 7 wt% SBS have the highest particle area of 27.7 μm2. The coefficient of variation in the area-weighted average axis ratio and the coefficient of variation in average particle area show the same relationship to the shearing rate.

Table 5 Influence of shearing rate on the micro-morphologies of SBS in the mix

Micro-morphologies in mixtures and their corresponding binder

Besides the micro-morphologies of the SBS modifier at the transition zone in asphalt mixtures, SBS micro-morphologies in asphalt binder were also studied by the same image processing methods described in Micromorphology characterization method section. Moreover, the micro-morphologies of SBS in the asphalt binder phase, including area ratio, box dimension, area-weighted average axis ratio, and average particle area, were compared to the characteristics of their corresponding mixtures to illustrate the changes of SBS particles from the binder phase to the mixture phase.

Figure 12 presents the differences in area ratio for the SBS modifier in the asphalt binder and their corresponding mixtures. It shows that the area ratio of the SBS modifier in asphalt mixtures is lower than that in the binder, with only one exception. Mortar in the asphalt mixture includes asphalt binder, filler, and fine aggregate. The filler occupies a specific volume in the mortar, resulting in a lower area ratio of the SBS modifier [14]. Specimens prepared at 3 wt% adding ratio, 130 °C modification temperature, and 3500 rpm shear rate present a slightly opposite trend. The modification temperature of 130 °C was not high enough to ensure sufficient swelling for SBS particles in the modified binder. At the same time, hot mixing conditions would additionally promote the swelling process, resulting in a more significant area ratio of SBS particles in the mixture than in its binder [7, 28].

Fig. 12
figure12

Comparison of SBS area ratio in asphalt binder and their mixtures

Figure 13 compares the differences in average particle area for the SBS modifier in the asphalt binder and their corresponding mixtures. When the average particle area in the asphalt binder is higher than 50 μm2, it will lower the average particle area in its mixture. When it is lower than 50 μm2, a higher value of average particle area will be obtained in its mixture. For instance, in the cases of 4%-160C, 5%-160C, 7%-160C, 7%-2000 rpm, and 7%-5000 rpm, the average particle area was significantly reduced from the binder situation to the mixture situation. It illustrated that when the average particle area is big enough, the friction stress between fine aggregates and filler during the compaction process might further separate the SBS modifier, resulting in a lower value of average particle area from binder condition to mixture condition [4, 24].

Fig. 13
figure13

Comparison of SBS average particle area in asphalt binder and their mixtures

The binder prepared at 130 °C of modification temperature has the highest increasing average particle area from the binder phase to the mixture phase. It agrees with Fig. 11 that the hot mixing process will promote the swelling of SBS particles that have not got sufficient swelling due to the low modification temperature.

Figure 14 illustrates that all the box dimension values of SBS particles in the asphalt mixture are lower than those in the asphalt binder. According to the definition of box dimension, the closer to 2 box dimensions, the better the particle distribution will be. The differences described in Fig. 14 indicate that the distribution of the SBS modifier in the asphalt mixture is worse than in the asphalt binder. Fine aggregate and filler, which have particles with a similar diameter to SBS particles varying around 75 μm, would negatively influence the distribution of the SBS modifier. The area-weighted average axis ratio of the SBS modifier described in Fig. 15 shows slight differences from the binder phase to the mixture phase. Most of them were lower than 2, a pretty low value that means good sphericity of the SBS modifier.

Fig. 14
figure14

Comparison of box dimension in asphalt binder and their mixtures

Fig. 15
figure15

Comparison of SBS area-weighted average axis ratio in asphalt binder and their mixtures

Conclusions

A quantitative analysis of the SBS distribution characteristics in the asphalt mixture was introduced in this study. The influence of the SBS modification condition on the final SBS micro-morphologies was also quantified. From the discussed results, the following conclusions can be drawn:

  1. 1.

    The introduced cross-section preparation and fluorescence microscopy image analysis can be used to determine the SBS micro-morphology characteristics in the mortar transition zone of the asphalt mixture quantitatively. The life extension of the SBS modified asphalt mixture can be improved with a better distributed SBS modifier in the mixture.

  2. 2.

    SBS content significantly affects the volume fraction of SBS particles in asphalt mortar. With the increase of SBS adding content, SBS average particle area, area-weighted average axis ratio, and their coefficient of variation increase. While superfluous SBS modifiers in the binder at a higher ratio, for instance, 7 wt%, as proved in this study, will decrease the value of the box dimension.

  3. 3.

    Too much lower modification temperature worsens the SBS modifier in the mixture, resulting in a wide range of particle size, higher axis ratio, and higher area ratio. The area ratio increases with the shearing rate and adding ratio, while a higher shearing rate would break the SBS network and weaken the final mechanical properties. Specimens at 3500 rpm have the lowest coefficient of variation in area-weighted average axis ratio, indicating a better homogeneous SBS particle shape.

  4. 4.

    The micro-morphologies of SBS in the asphalt mixture phase varied from the asphalt binder phase. The area ratio of the SBS modifier in the mixture phase was lower than that in the binder phase, and the binder prepared at 130 °C had the highest increasing percentage of average particle area from the binder phase to the mixture phase. The mineral filler and fine aggregate, together with an additional heating process from the mixing stage, will significantly influence the swelling state and particle size of the SBS modifier.

Availability of data and materials

All data generated or analyzed during this study are included in this published article.

Abbreviations

RGB:

Red Green Blue

MATLAB:

Matrix Laboratory

SBS:

Styrene–butadiene–styrene

D:

SBS box dimension

wt%:

Weight ratio
